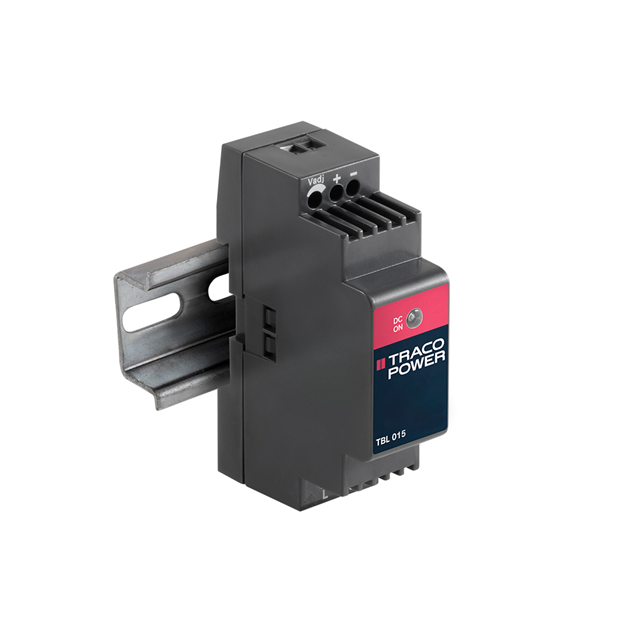

TBL 015-112

Active

Traco Power

AC/DC DIN RAIL SUPPLY 12V 15W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 12V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TBL 015-112

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CE, cULus, CSAus, cURus, CB, SIQ
Current - Output (Max) [Max]	1.25 A
Efficiency	79 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	15 W
Size / Dimension [x]	54.5 mm
Size / Dimension [x]	2.15 "
Size / Dimension [y]	26.4 mm
Size / Dimension [y]	1.04 in
Size / Dimension [z]	3.52 "
Size / Dimension [z]	89.4 mm
Voltage - Output 1	12 V

Part	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Features	Voltage - Output 1	Applications	Input Type
Traco Power TBL 015-112	15 W	-25 °C	70 °C	1.25 A	CB CE CSAus cULus cURus SIQ	3.52 "	26.4 mm	54.5 mm	2.15 "	89.4 mm	1.04 in	1	85 VAC	264 VAC	79 %	Adjustable Output IP20 Universal Input	12 V	Industrial ITE (Commercial)	AC
