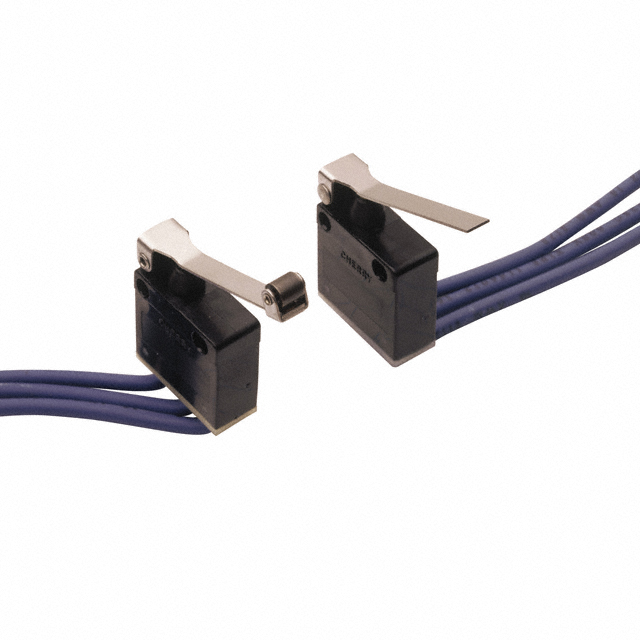

0E72-40KT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
0E72-40KT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0E72-40KT |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.6 mm |
| Differential Travel | 0.025 in |
| Electrical Life | 6000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 75 gf |
| Operating Position | 19.35 mm |
| Operating Position | 0.762 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.125 in |
| Overtravel | 3.2 mm |
| Pretravel | 6.1 mm |
| Pretravel | 0.24 in |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 12.34 | |
Description
General part information
0E72 Series
Switch SPDT Chassis Mount
