DF62WZ-9P-2.2DSA(50)
ActiveHirose Electric USA, Inc.

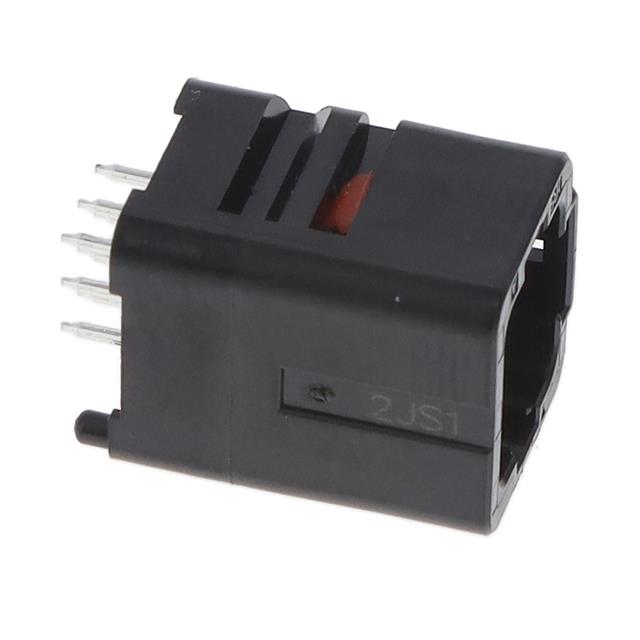

CONN HEADER VERT 9POS 2.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DF62WZ-9P-2.2DSA(50)
ActiveHirose Electric USA, Inc.
CONN HEADER VERT 9POS 2.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF62WZ-9P-2.2DSA(50) |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Post | 2.84 mm |
| Contact Length - Post | 0.112 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Waterproof, Board Guide |
| Ingress Protection | IP67 |
| Insulation Color | Black |
| Insulation Height | 0.61 in |
| Insulation Height | 15.49 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.087 in |
| Pitch - Mating | 2.2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
