JBXFC1G05MSSDSMR
ActiveSouriau-Sunbank by Eaton

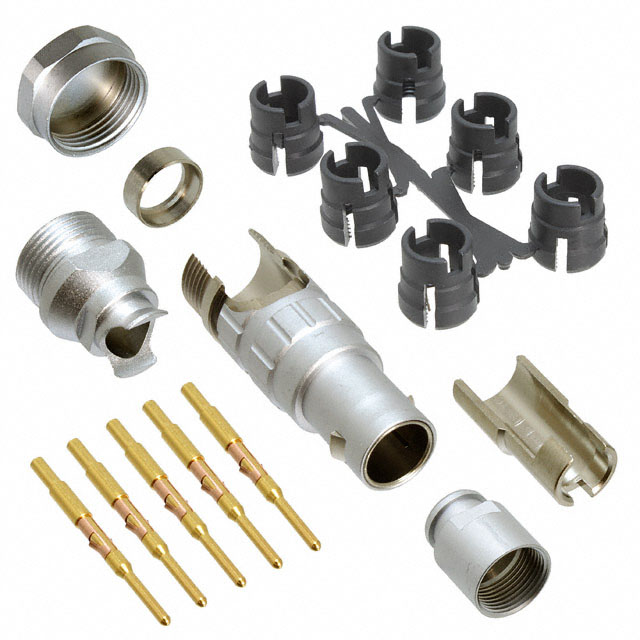

CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JBXFC1G05MSSDSMR
ActiveSouriau-Sunbank by Eaton
CONN PLUG MALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JBXFC1G05MSSDSMR |
|---|---|
| Applications | Instrumentation, Medical, Telecommunications, Industrial |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.5 µm |
| Contact Finish Thickness - Mating | 19.7 µin |
| Current Rating (Amps) | 9 A |
| Fastening Type | Push-Pull |
| Features | Boot Adapter, Backshell |
| Ingress Protection | IP40 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 1 |
| Shielding | Shielded |
| Voltage Rating | 660 V |
JBXFC1G Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Finish - Mating | Termination | Insert Material | Shielding | Fastening Type | Applications | Features | Current Rating (Amps) | Voltage Rating | Color | Mounting Type | Shell Material | Connector Type | Shell Finish | Ingress Protection | Number of Positions | Backshell Material, Plating | Material Flammability Rating | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell Boot Adapter | 10 A | 900 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Female Sockets Plug | Chrome over Nickel | IP40 | 4 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell | 10 A | 900 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 4 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell Boot Adapter | 10 A | 900 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 4 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G | |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell Boot Adapter | 9 A | 660 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G | ||
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell | 10 A | 900 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 4 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G | |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell Boot Adapter | 15 A | 760 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 2 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell | 5 A | 600 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 8 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell Boot Adapter | 12 A | 600 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G | |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell | 12 A | 600 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G | |
Souriau-Sunbank by Eaton | 0.5 µm | 19.7 µin | Metal | Gold | Crimp | Polyetheretherketone (PEEK) | Shielded | Push-Pull | Industrial Instrumentation Medical Telecommunications | Backshell | 15 A | 760 V | Silver | Free Hanging (In-Line) Right Angle | Brass | Male Pins Plug | Chrome over Nickel | IP40 | 2 | Brass Chrome over Nickel | UL94 V-0 | 1 | 125 °C | -40 °C | G |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JBXFC1G Series
5 Position Circular Connector Plug, Male Pins Solder Cup
