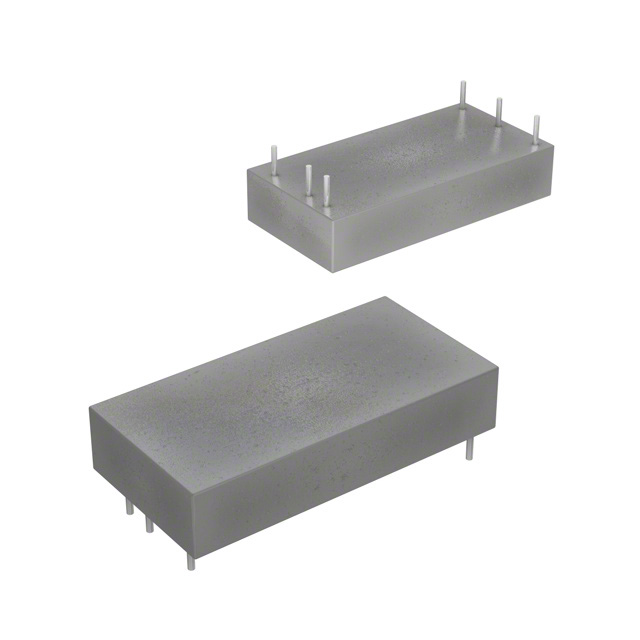

RP20-2405SFW/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 4:1 9-36VIN 5VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP20-2405SFW/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 4:1 9-36VIN 5VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP20-2405SFW/N-HC

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	4 A
Efficiency	86 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [custom]	-40 °C, 63 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

RP20-2412 Series

Isolated DC/DC Converters - Through Hole 20W DC/DC 1.6kV REG 2:1 18-36Vin 15Vout

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Control Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Power (Watts)	Features	Number of Outputs	Efficiency	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power RP20-2412SF-HC	Isolated Module	85 °C	-40 °C	1.67 A	18 V	Active High Enable	12 V	36 V	20 W	OCP OVP SCP UVLO	1	87 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module
RECOM Power RP20-4812DF	Isolated Module	85 °C	-40 °C		36 V	Active High Enable	12 V	75 V	20 W	OCP OVP SCP UVLO	2	88 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module	-12 V	833 mA	833 mA
RECOM Power RP20-1215DF	Isolated Module	85 °C	-40 °C		9 V	Active High Enable	15 V	18 V	20 W	OCP OVP SCP UVLO	2	86 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module	-15 V		667 mA	667 mA
RECOM Power RP20-2405SAW/P	Isolated Module	90 °C	-40 °C	4 A	9 V	Active High Enable	5 V	36 V	20 W	OCP OVP Remote On/Off SCP UVLO	1	89 %	Through Hole	ITE (Commercial)	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	1.6 kV	6-SIP Module
RECOM Power RP20-1215SF	Isolated Module	85 °C	-40 °C	1.33 A	9 V	Active High Enable	15 V	18 V	20 W	OCP OVP SCP UVLO	1	85 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module
RECOM Power RP20-1205SF/N	Isolated Module	85 °C	-40 °C	4 A	9 V	Active Low Enable	5 V	18 V	20 W	OCP OVP Remote On/Off SCP	1	87 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module
RECOM Power RP20-1215DF/N-HC	Isolated Module	85 °C	-40 °C		9 V	Active Low Enable	15 V	18 V	20 W	OCP OVP Remote On/Off SCP	2	86 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module	-15 V		667 mA	667 mA
RECOM Power RP20-4812SF-HC	Isolated Module	85 °C	-40 °C	1.67 A	36 V	Active High Enable	12 V	75 V	20 W	OCP OVP SCP UVLO	1	88 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	1.6 kV	6-DIP Module
RECOM Power RP20-2412DA/P	Isolated Module	90 °C	-40 °C		18 V	Active High Enable	12 V	36 V	20 W	OCP OVP Remote On/Off SCP UVLO	2	90 %	Through Hole	ITE (Commercial)	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	1.6 kV	6-SIP Module	-12 V	833 mA	833 mA
RECOM Power RP20-2412DAW	Isolated Module	90 °C	-40 °C		9 V		12 V	36 V	20 W	OCP OVP SCP UVLO	2	89 %	Through Hole	ITE (Commercial)	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	1.6 kV	6-SIP Module 5 Leads	-12 V	833 mA	833 mA
