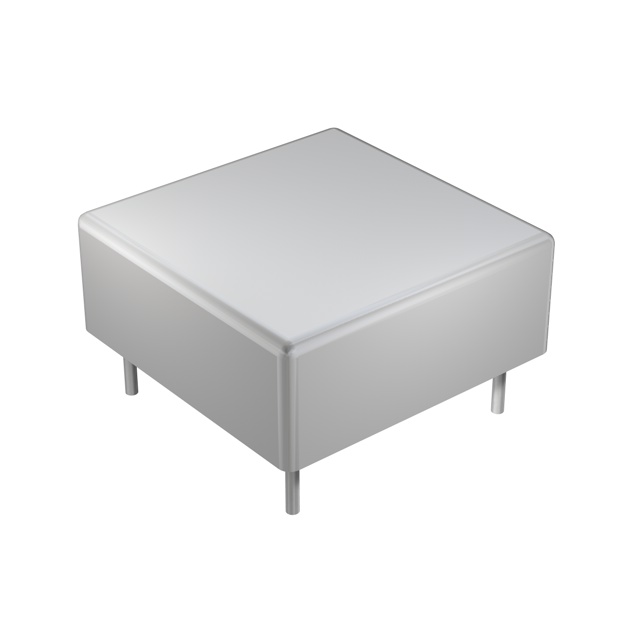

RP20-2412DA/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG +/-12VOUT POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP20-2412DA/P

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max)	833 mA
Current - Output (Max)	833 mA
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SIP Module
Power (Watts)	20 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

RP20-243.3 Series

Isolated DC/DC Converters - Through Hole 20W DC/DC 1.6kV REG 2:1 18-36Vin 15Vout

Part	Power (Watts)	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Efficiency	Voltage - Input (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Outputs	Voltage - Isolation	Control Features	Operating Temperature [custom]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Package / Case	Current - Output (Max)
RECOM Power RP20-2415SFR/P-HC	20 W	OCP OVP Remote On/Off SCP UVLO	9 V	15 V	6-DIP Module	1.33 A	16.8 mm	25.4 mm	2 in	0.66 in	50.8 mm	25.4 mm	ITE (Commercial)	88 %	36 V	Isolated Module	-40 °C	79 °C	Through Hole	1	1.6 kV	Active High Enable
RECOM Power RP20-2415DFW/N-HC	20 W	OCP OVP Remote On/Off SCP	9 V	15 V	6-DIP Module		10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	86 %	36 V	Isolated Module			Through Hole	2	1.6 kV	Active Low Enable	-40 °C 63 °C	-15 V	667 mA	667 mA
RECOM Power RP20-4815DA/N-HC	20 W	OCP OVP Remote On/Off SCP UVLO	36 V	15 V	6-SIP Module		9.9 mm	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	ITE (Commercial)	90 %	75 V	Isolated Module	-40 °C	90 °C	Through Hole	2	1.6 kV	Active Low Enable		-15 V		677 mA
RECOM Power RP20-1215DF	20 W	OCP OVP SCP UVLO	9 V	15 V	6-DIP Module		10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	86 %	18 V	Isolated Module	-40 °C	85 °C	Through Hole	2	1.6 kV	Active High Enable		-15 V	667 mA	667 mA
RECOM Power RP20-2415DFR/N	20 W	OCP OVP Remote On/Off SCP UVLO	9 V	15 V	6-DIP Module		10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	89 %	36 V	Isolated Module	-40 °C	79 °C	Through Hole	2	1.6 kV			-15 V	667 mA	667 mA
RECOM Power RP20-1215SF	20 W	OCP OVP SCP UVLO	9 V	15 V	6-DIP Module	1.33 A	10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	85 %	18 V	Isolated Module	-40 °C	85 °C	Through Hole	1	1.6 kV	Active High Enable
RECOM Power RP20-2415DFR/P	20 W	OCP OVP Remote On/Off SCP UVLO	9 V	15 V	6-DIP Module		10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	89 %	36 V	Isolated Module	-40 °C	79 °C	Through Hole	2	1.6 kV	Active High Enable		-15 V	667 mA	667 mA
RECOM Power RP20-2415SFR/XC	20 W	OCP OVP SCP UVLO	9 V	15 V	6-DIP Module	1.33 A	10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	88 %	36 V	Isolated Module	-40 °C	79 °C	Through Hole	1	1.6 kV						5 Leads
RECOM Power RP20-1215DF/N-HC	20 W	OCP OVP Remote On/Off SCP	9 V	15 V	6-DIP Module		10.2 mm	25.4 mm	2 in	0.4 "	50.8 mm	25.4 mm	ITE (Commercial)	86 %	18 V	Isolated Module	-40 °C	85 °C	Through Hole	2	1.6 kV	Active Low Enable		-15 V	667 mA	667 mA
RECOM Power RP20-2412DA/P	20 W	OCP OVP Remote On/Off SCP UVLO	18 V	12 V	6-SIP Module		9.9 mm	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	ITE (Commercial)	90 %	36 V	Isolated Module	-40 °C	90 °C	Through Hole	2	1.6 kV	Active High Enable		-12 V	833 mA			833 mA
