A89306GETSR-T
ActiveAllegro MicroSystems
3-PHASE BLDC FOC MOTOR CONTROLLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A89306GETSR-T
ActiveAllegro MicroSystems
3-PHASE BLDC FOC MOTOR CONTROLLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A89306GETSR-T |
|---|---|
| Applications | General Purpose |
| Function | Controller - Commutation, Direction Management |
| Interface | I2C, Analog, PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (6) |

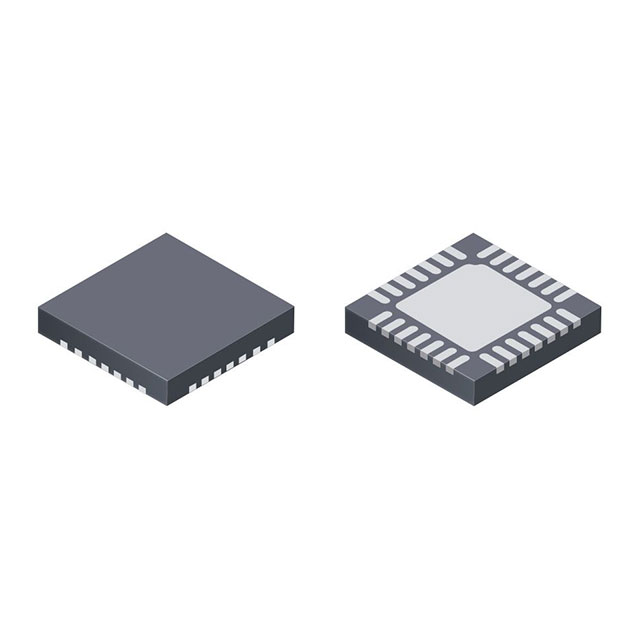

| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) |
| Technology | Power MOSFET |
| Voltage - Supply [Max] | 50 VDC |
| Voltage - Supply [Min] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.42 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.54 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.89 | |||
| 500 | $ 1.76 | |||
| 1000 | $ 1.65 | |||
| 2500 | $ 1.54 | |||
| Digi-Reel® | 1 | $ 4.42 | ||
| 10 | $ 2.92 | |||
| 25 | $ 2.54 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.89 | |||
| 500 | $ 1.76 | |||
| 1000 | $ 1.65 | |||
| 2500 | $ 1.54 | |||
| Tape & Reel (TR) | 6000 | $ 1.46 | ||
Description
General part information
A89306 Series
Multiphase Motor Driver Power MOSFET Analog, I2C, PWM 28-QFN (5x5)
