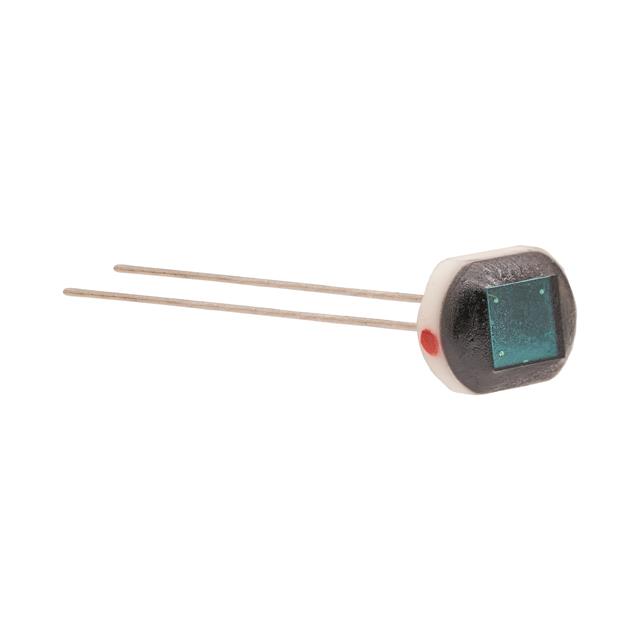

SLD-70BG2A
ActiveAdvanced Photonix
SENSOR PHOTODIODE 550NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLD-70BG2A
ActiveAdvanced Photonix
SENSOR PHOTODIODE 550NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLD-70BG2A |
|---|---|
| Active Area | 9 mm² |
| Color - Enhanced | Blue/Green |
| Current - Dark (Typ) | 100 nA |
| Mounting Type | User Defined |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Radial |
| Response Time | 4 µs, 6 µs |
| Spectral Range [Max] | 700 nm |
| Spectral Range [Min] | 400 nm |
| Viewing Angle | 120 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V |
| Wavelength | 550 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.97 | |
| 10 | $ 5.26 | |||
| 100 | $ 4.26 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.68 | |||
| 2000 | $ 3.56 | |||
Description
General part information
SLD-70 Series
Photodiode 550nm 4µs, 6µs 120° Radial
