6003-410-017

Active

Digilent, Inc.

XC7Z020-1CLG400C FPGA DEVELOPMENT BOARD 650MHZ 512MB RAM 16MB SPI FLASH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

6003-410-017

Active

Digilent, Inc.

XC7Z020-1CLG400C FPGA DEVELOPMENT BOARD 650MHZ 512MB RAM 16MB SPI FLASH

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6003-410-017

Contents	Board(s)
For Use With/Related Products	XC7Z020
Interconnect System	Pmod, Arduino R3 Shield
Platform	PYNQ-Z1 Zynq-7000 ARM/FPGA AP SoC Python Productivity
Suggested Programming Environment	Python, PYNQ, Vivado
Type	FPGA + MCU/MPU SoC
Utilized IC / Part	XC7Z020

XC7Z020 Series

Part	Platform	Interconnect System	For Use With/Related Products	Contents	Type	Suggested Programming Environment	Utilized IC / Part
Digilent, Inc. 471-006	Arty Z7-20 Zynq-7000 AP SoC with SDSoC Voucher	Arduino R3 Shield Pmod	XC7Z020	Board(s)	FPGA + MCU/MPU SoC	SDSoC Vivado	XC7Z020
Digilent, Inc. 410-351-20	Zybo Z7-20 Zynq-7000 ARM/FPGA AP SoC	Pmod	XC7Z020	Board(s)		Vitis Vivado	XC7Z020
Digilent, Inc. 6003-410-017	PYNQ-Z1 Zynq-7000 ARM/FPGA AP SoC Python Productivity	Arduino R3 Shield Pmod	XC7Z020	Board(s)	FPGA + MCU/MPU SoC	PYNQ Python Vivado	XC7Z020
Digilent, Inc. 240-114-1	PYNQ-Z1 Zynq-7000 ARM/FPGA AP SoC Python Productivity	Arduino R3 Shield Pmod	XC7Z020	Accessories Board(s) Cable(s) Power Supply	FPGA + MCU/MPU SoC	PYNQ Python Vivado	XC7Z020

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 299.00
Newark	Each	1	$ 299.00

Description

General part information

XC7Z020 Series

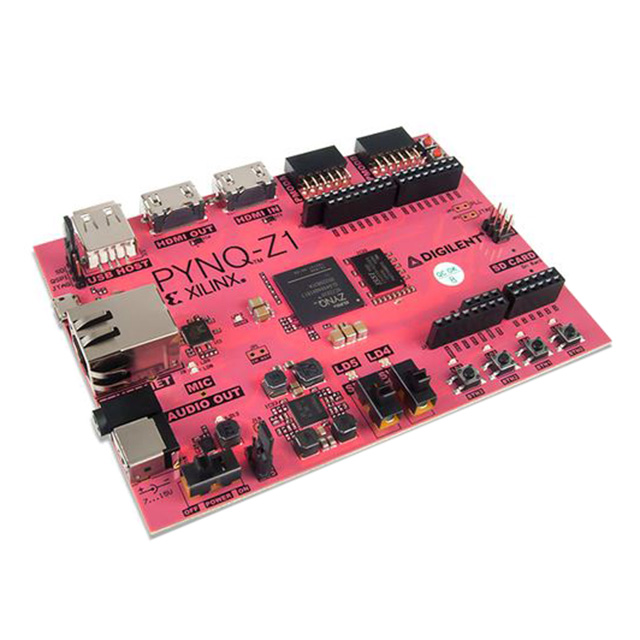

6003-410-017 is a PYNQ-Z1: Python productivity for Zynq-7000 ARM/FPGA SoC board designed to be used with the PYNQ open-source framework that enables embedded programmers to program the onboard SoC with Python. It is designed around the Xilinx Zynq®-7000 SoC, which combines the programmable logic of an FPGA with a dual-core ARM Cortex™-A9 processor. Hardware-wise, the PYNQ-Z1 is flexible and ready-to-use. It is similar in form factor and features to Digilent's Arty Z7, featuring popular Arduino™ headers, Pmod ports, onboard I/O, HDMI in/out, audio out, and USB and Ethernet connectivity. This makes the PYNQ-Z1 a versatile and easily customizable SoC development platform for applications such as computer vision, industrial control, IoT, encryption, and embedded computing acceleration.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
