SMLP12HBC7W1AWQ

Obsolete

Rohm Semiconductor

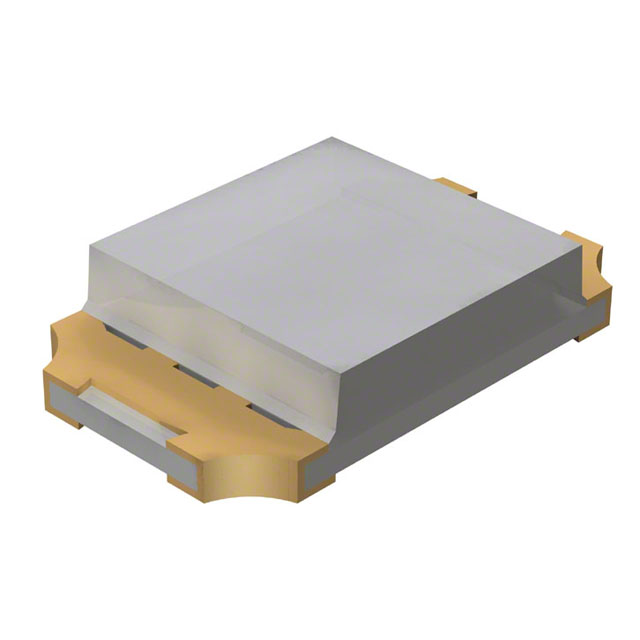

LED PINK DIFFUSED 1006 SMD

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

LED PINK DIFFUSED 1006 SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Package / Case	Height (Max) [Max]	Lens Transparency	Lens Style	Current - Test	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Mounting Type	Supplier Device Package	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]
Rohm Semiconductor SMLP12HBC7W1AWQ	0.6 mm	0402 (1005 Metric)	0.25 mm	Diffused	Square with Flat Top	5 mA	White	2.9 V	22 mcd	Pink	Surface Mount	1006	0402	1 mm	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pink LED Indication - Discrete 2.9V 0402 (1005 Metric)

Technical documentation and resources
