BU-P1081-12-2

Active

Mueller Electric Co

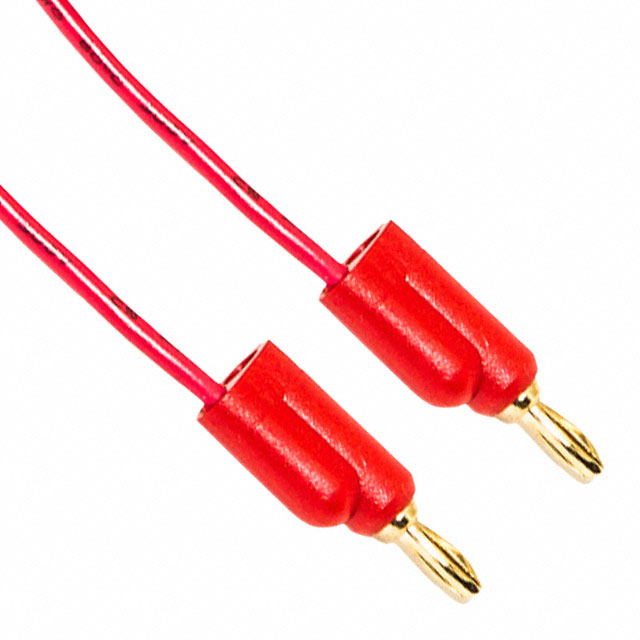

BANANA TEST LEAD, MINIATURE STACKING BANANA PLUG, MINIATURE STACKING BANANA PLUG, 12 ", 300 MM

Search across all available documentation for this part.

Active

Mueller Electric Co

BANANA TEST LEAD, MINIATURE STACKING BANANA PLUG, MINIATURE STACKING BANANA PLUG, 12 ", 300 MM

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P1081-12-2

1st Connector	Miniature Banana Plug, Single
2nd Connector	Miniature Banana Plug, Single
Cable Length	12 in
Cable Length	304.8 mm
Configuration	Banana to Banana
Contents	Red
Contents [custom]	1
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Vertical Stacking (Both Connectors)
Type	Patch Cord
Wire Gauge	20 AWG

Part	2nd Connector	1st Connector	Configuration	Material - Insulation	Cable Length	Cable Length	Stacking Method	Contents	Wire Gauge	Type	Current Rating (Amps)	Contents [custom]
Mueller Electric Co BU-P1081-36-4	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	36 in	914.4 mm	Vertical Stacking (Both Connectors)	1 Lead Yellow	20 AWG	Patch Cord	5 A
Mueller Electric Co BU-P1081-12-0	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	12 in	304.8 mm	Vertical Stacking (Both Connectors)	1 Lead Black	20 AWG	Patch Cord	5 A
Mueller Electric Co BU-P1081-12-2	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	12 in	304.8 mm	Vertical Stacking (Both Connectors)	Red	20 AWG	Patch Cord	5 A	1
Mueller Electric Co BU-P1081-24-2	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	Vertical Stacking (Both Connectors)	Red	20 AWG	Patch Cord	5 A	1
Mueller Electric Co BU-P1081-24-0	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	Vertical Stacking (Both Connectors)	1 Lead Black	20 AWG	Patch Cord	5 A
Mueller Electric Co BU-P1081-36-0	Miniature Banana Plug Single	Miniature Banana Plug Single	Banana to Banana	Poly-Vinyl Chloride (PVC)	36 in	914.4 mm	Vertical Stacking (Both Connectors)	1 Lead Black	20 AWG	Patch Cord	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Miniature Banana Plug, Single To Miniature Banana Plug, Single Patch Cord 3000V (3kV)
