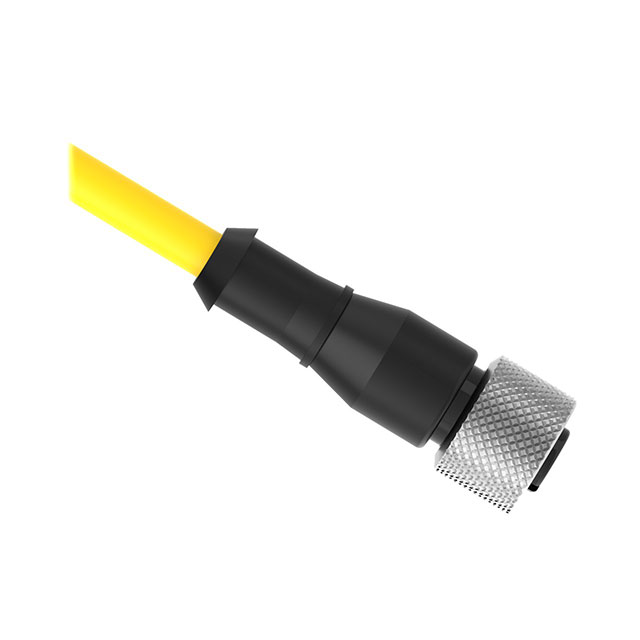

QDE-515D
ActiveBANNER ENGINEERING
CORDSET A-CODE M12 SINGLE ENDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QDE-515D
ActiveBANNER ENGINEERING
CORDSET A-CODE M12 SINGLE ENDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QDE-515D |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Yellow |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 15 ft |
| Length [x] | 4.57 m |
| Shielding | Unshielded |
| Usage | Industrial Environments |
QDE Series
| Part | Ingress Protection | 1st Connector Orientation [custom] | 2nd Connector Type | Cable Type | 1st Connector Gender | Length [x] | Length [x] | 1st Connector Number of Positions Loaded | Cable Material | Shielding | 1st Connector Shell Size - Insert | 1st Connector Number of Positions | 1st Connector Mounting Type | Usage | Color | 1st Connector Type | Assembly Configuration | Length | Length | 1st Connector Number of Positions Loaded | 1st Connector Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | 30.5 m | 100 ft | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 8 positions | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 5 | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | 15.24 m | 50 ft | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 8 positions | Free Hanging (In-Line) | Industrial Environments | Black | Plug | Standard | 15.24 m | 50 ft | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | 30.5 m | 100 ft | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 8 positions | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug Right Angle | Standard | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 8 positions | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | 22.9 m | 22.86 m | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 8 positions | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug Right Angle | Standard | 15.24 m | 50 ft | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | 4.57 m | 15 ft | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 5 | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | Polyvinyl Chloride (PVC) | Unshielded | M12 | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | 22.9 m | 22.86 m | 11 | 12 | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | All | Polyvinyl Chloride (PVC) | Unshielded | M12 | 5 | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | 7.62 m | 25 ft | ||||
BANNER ENGINEERING | IP67 - Dust Tight Waterproof | Keyed | Wire Leads | Round | Female Sockets | Polyvinyl Chloride (PVC) | Unshielded | M12 | Free Hanging (In-Line) | Industrial Environments | Yellow | Plug | Standard | 15.24 m | 50 ft | 11 | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QDE Series
Circular Cable Assembly Unshielded 15.00' (4.57m)
