05S1P4-S00S3
ObsoleteRosenberger

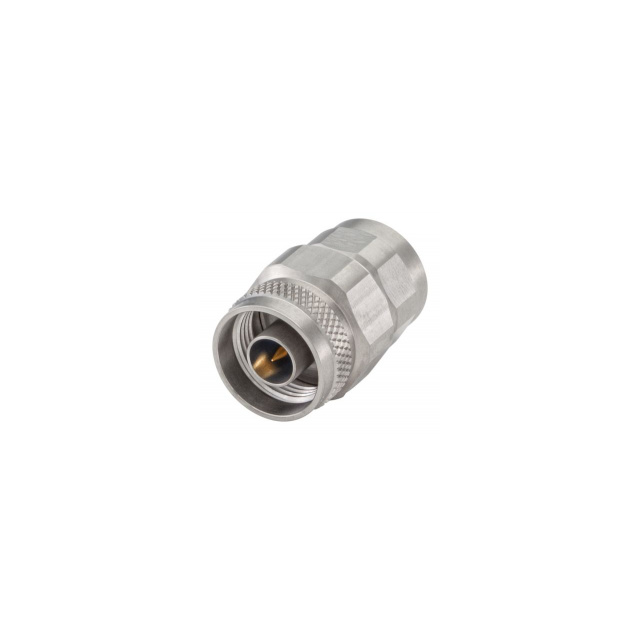

PRECISION N TYPE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
05S1P4-S00S3
ObsoleteRosenberger
PRECISION N TYPE ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05S1P4-S00S3 |
|---|---|
| Adapter Series | RJC-N to RJC-SL |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) | Male Pin, SL Plug |
| Dielectric Material | Polyphenylene Ether (PPE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.21 dB |
| Mating Cycles | 3000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
05S1P4 Series
Adapter Coaxial Connector N Plug, Male Pin To SL Plug, Male Pin 50 Ohms
