0022191031

Active

Molex

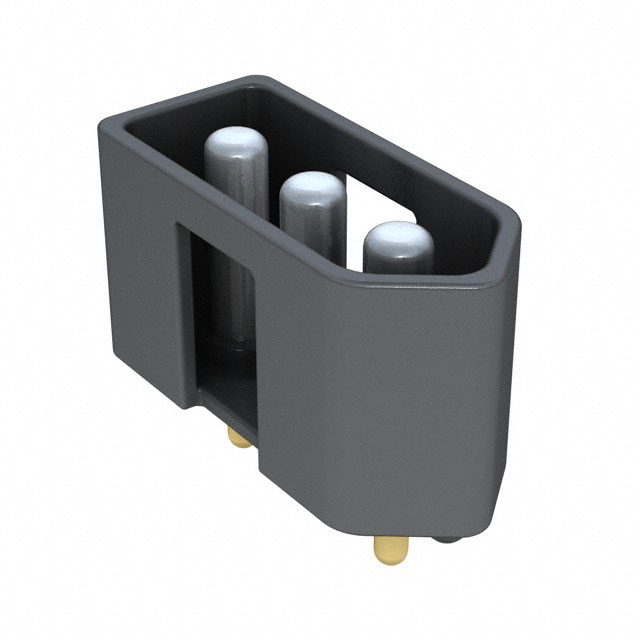

CONN HEADER VERT 3POS 5.03MM

Search across all available documentation for this part.

Active

Molex

CONN HEADER VERT 3POS 5.03MM

Technical Specifications

Parameters and characteristics for this part

Specification	0022191031

Applications	Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Cartridge Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Color	Black
Insulation Height	10.7 mm
Insulation Height [z]	0.421 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	2
Number of Rows	1
Pitch - Mating	5.03 mm
Pitch - Mating	0.198 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Connector Type	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Number of Positions	Material Flammability Rating	Style	Contact Finish - Post	Applications	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Termination	Insulation Height [z]	Contact Length - Post	Contact Length - Post
Molex 0022192048	Header	Male Pin	Square	30 Áin	0.76 Ám	Brass	0.1 in	2.54 mm	6.7 mm	0.264 in	Through Hole Right Angle	4	UL94 V-0	Board to Board Cable	Tin	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	0.141 "	3.58 mm	White	Gold	3	2.54 µm	100 µin	Nylon Polyamide (PA)	Friction Lock	6.35 mm	0.25 in	1	Solder
Molex 0022191031	Header	Male Pin	Circular	200 µin	5.08 µm	Cartridge Brass	0.198 in	5.03 mm			Through Hole		UL94 V-0	Board to Board Cable	Tin	General Purpose Telecommunications	Shrouded - 4 Wall			Black		2			Polyester	Latch Lock	10.7 mm		1	Solder	0.421 in	4.32 mm	0.17 in
Molex 0022192054

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	825	$ 1.61

General part information

Connector Header Through Hole 3 position 0.198" (5.03mm)
