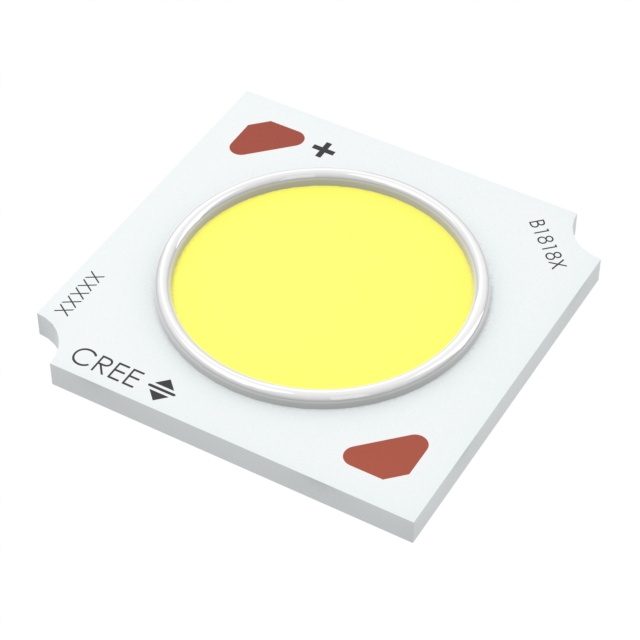

CMB1818-0000-000N0H0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1818-0000-000N0H0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMB1818-0000-000N0H0A30G

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.5 A
Current - Test	500 mA
Height [z]	1.75 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Luminous Flux @ Current/Temperature	2712 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.5 V

CMB1818 Series

Part	CCT (K)	Configuration	Temperature - Test	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Type	Light Emitting Surface (LES) [diameter]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Type	CRI (Color Rendering Index)	Current - Max [Max]	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	CCT (K)
Cree LED CMB1818-R096-00PN0U0A50G	5000 K	Square	85 °C	115 °	Cool White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm
Cree LED CMB1818-R096-00PN0U0A27G	2700 K	Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm
Cree LED CMB1818-R096-00PN0U0A30U		Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm
Cree LED CMB1818-R096-00PN0U0A35H	3500 K	Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm
Cree LED CMB1818-R096-000N0B0A50E	5000 K	Square	85 °C	115 °	Cool White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	70	1.5 A	1.75 mm	2996 lm	179 lm/W	5-Step MacAdam Ellipse
Cree LED CMB1818-R096-000N0B0A65E	6500 K	Square	85 °C	115 °	Cool White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	70	1.5 A	1.75 mm	3020 lm	180 lm/W
Cree LED CMB1818-R096-00PN0U0A31Q	3100 K	Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm
Cree LED CMB1818-R096-000N0H0A50G		Square	85 °C	115 °	Cool White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	80	1.5 A	1.75 mm	2757 lm
Cree LED CMB1818-R096-000N0U0A31Q	3100 K	Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	90	1.5 A	1.75 mm	2210 lm	132 lm/W
Cree LED CMB1818-0000-000N0H0A30G	3000 K	Square	85 °C	115 °	Warm White	33.5 V	Chip On Board (COB)	12 mm	500 mA	17.85 mm	17.85 mm	Flat	80	1.5 A	1.75 mm	2712 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.16
		10	$ 4.90
		50	$ 4.76
		100	$ 4.39
		200	$ 3.99
		500	$ 3.74
		1000	$ 3.44

Description

General part information

CMB1818 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1818 White, Warm Square
