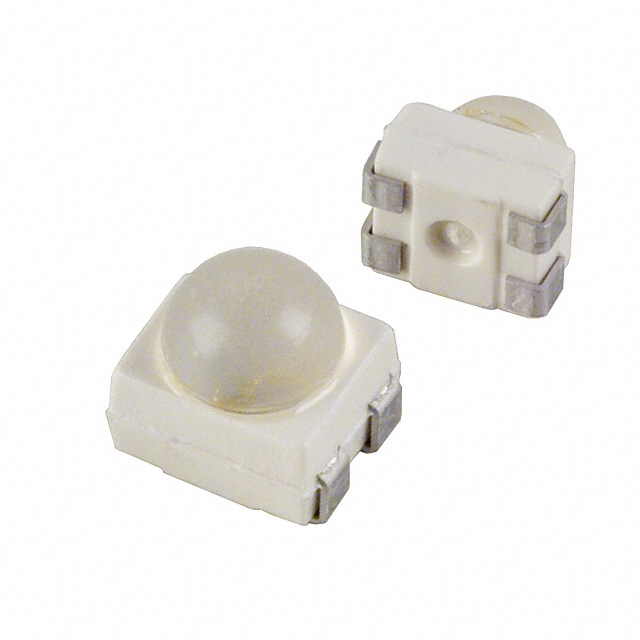

LY E65F-DAEB-46-1-Z

Active

ams-OSRAM USA INC.

LED YELLOW CLEAR 4PLCC SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED YELLOW CLEAR 4PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Mounting Type	Height (Max) [Max] [z]	Lens Size [diameter]	Wavelength - Peak	Configuration	Wavelength - Dominant	Package / Case	Millicandela Rating	Current - Test	Supplier Device Package	Lens Transparency	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lens Color	Lens Style	Wavelength	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. LY E65F-DAEB-46-1-Z	Yellow	Surface Mount	3.5 mm	2.6 mm	597 nm	Standard	590 nm	4-PLCC	7850 mcd	50 mA	4-PLCC	Clear	2.15 V	2.8 mm	3.2 mm	60 °	Colorless	Round with Domed Top
ams-OSRAM USA INC. LY E65F-DBFA-46-3B5A-50-R33-Z	Yellow	Surface Mount						4-PLCC		50 mA	4-PLCC		2.15 V	0.11 in	0.126 in	60 °			590 nm	3.2 mm	2.8 mm	70 mA	3.5 mm	0.138 in
ams-OSRAM USA INC. LY E65F-CBDB-35-Z	Yellow	Surface Mount	3.5 mm	2.6 mm	597 nm	Standard	590 nm	4-PLCC	5325 mcd	50 mA	4-PLCC	Clear	2.15 V	2.8 mm	3.2 mm	60 °	Colorless	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Yellow 590nm LED Indication - Discrete 2.15V 4-PLCC
