TOP187I40/450G

Active

Chip Shine / CSRF

187MIL ICT PROBE

Search across all available documentation for this part.

Active

Chip Shine / CSRF

187MIL ICT PROBE

Technical Specifications

Parameters and characteristics for this part

Specification	TOP187I40/450G

Current Rating (Amps)	5 A
Length - Overall [x]	1.423 in
Length - Overall [x]	36.15 mm
Length - Tip [x]	0.348 "
Length - Tip [x]	8.85 mm
Material - Body	Phosphor Copper, Gold Plated
Material - Tip	Beryllium Copper, Steel, Gold Plated
Tip Type	Spring Tip - Serrated Head
Tip Type [diameter]	4 mm
Tip Type [diameter]	0.157 in

Part	Tip Type [diameter]	Tip Type [diameter]	Tip Type	Length - Overall [x]	Length - Overall [x]	Material - Body	Length - Tip [x]	Length - Tip [x]	Material - Tip	Current Rating (Amps)	Tip Type [diameter]
Chip Shine / CSRF TOP187I40/450G	4 mm	0.157 in	Spring Tip - Serrated Head	1.423 in	36.15 mm	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel	5 A
Chip Shine / CSRF TOP187I28/400G	0.11 in		Spring Tip - Serrated Head	1.423 in	36.15 mm	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel	5 A	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 3.00

General part information

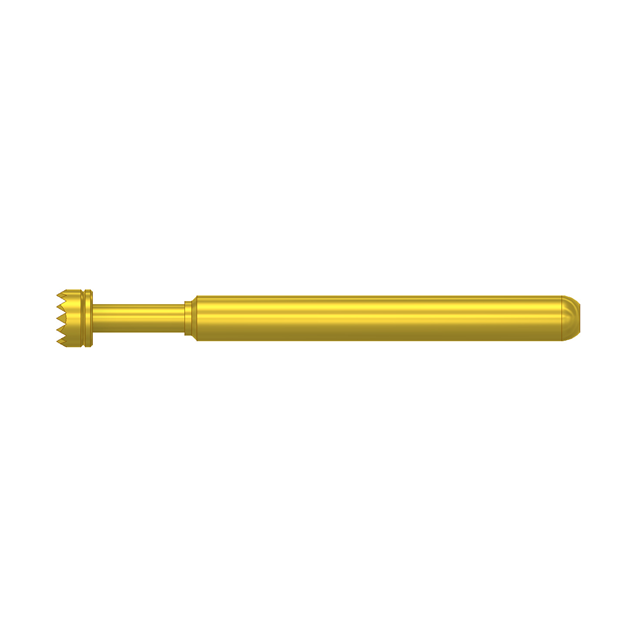

5 A Spring Tip - Serrated Head, 0.157" (4.00mm) Dia

Technical documentation and resources
