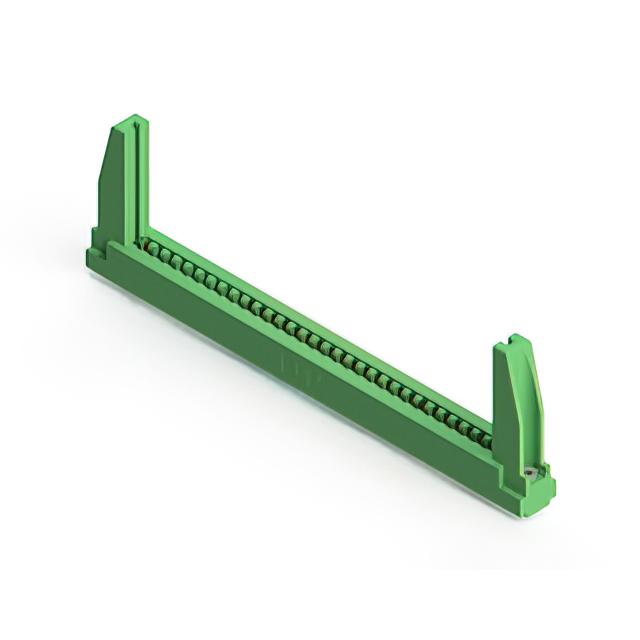

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-064-500-278

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 64 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-064-500-278

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

307-064 Series

...

Part	Contact Type	Contact Material	Color	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Termination	Number of Rows	Material - Insulation	Flange Feature	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 307-064-556-278	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Gold	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32
EDAC Inc. 307-064-456-204	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Tin	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	64			Dual	2	-40 °C	105 ░C	Female	32	3.96 mm	0.156 in
EDAC Inc. 307-064-400-268	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	0.156 in	3.96 mm	Solder Eyelet(s)	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	64			Dual	2	-40 °C	105 ░C	Female	32			Card Guides
EDAC Inc. 307-064-420-208	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	64			Dual	2	-40 °C	105 ░C	Female	32
EDAC Inc. 307-064-520-203	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	Floating Bobbin Flush Mount	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32	2.95 mm	0.116 in
EDAC Inc. 307-064-560-204	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	Gold	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32	3.96 mm	0.156 in	Card Extender
EDAC Inc. 307-064-558-202	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Gold	0.156 in	3.96 mm	Solder Wire Wrap	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32	3.25 mm	0.128 "
EDAC Inc. 307-064-558-204	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	Gold	0.156 in	3.96 mm	Solder Wire Wrap	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32	3.96 mm	0.156 in
EDAC Inc. 307-064-500-278	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Gold	0.156 in	3.96 mm	Solder Eyelet(s)	2	Polyester Thermoplastic	4-40 Flush Mount Threaded Insert Top Opening	64	10 Áin	0.25 Ám	Dual	2	-40 °C	105 ░C	Female	32			Card Guides
EDAC Inc. 307-064-424-204	Semi Bellows	Copper Alloy	Green	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	Tin	0.156 in	3.96 mm	Solder	2	Polyester Thermoplastic	Flush Mount Top Opening Unthreaded	64			Dual	2	-40 °C	105 ░C	Female	32	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.91
Newark	Each	1	$ 18.89
		100	$ 14.32
		250	$ 14.07
		500	$ 11.99
		1000	$ 9.43

Description

General part information

307-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
