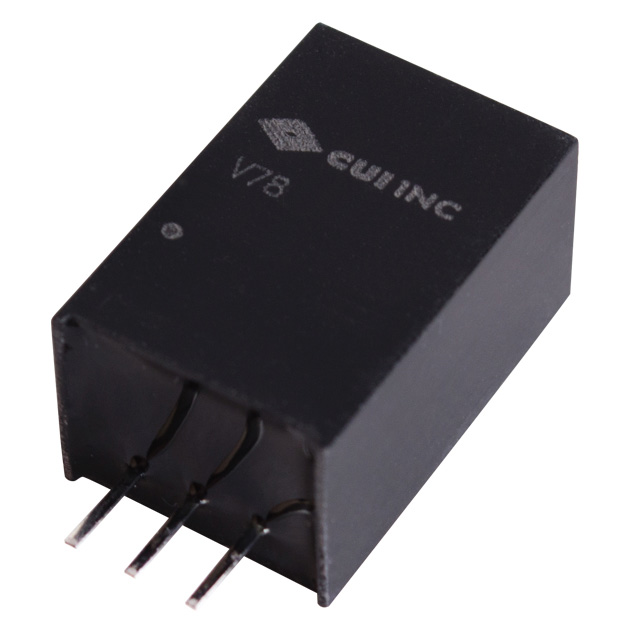

V7806-1500

Obsolete

CUI Inc.

DC DC CONVERTER 6.5V 9.75W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 6.5V 9.75W

Technical Specifications

Parameters and characteristics for this part

Specification	V7806-1500

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1.5 A
Efficiency	95 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	9.75 W
Size / Dimension [x]	0.45 in
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.5 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1	6.5 V

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Mounting Type	Package / Case	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]
CUI Inc. V7806W-500R	3.25 W	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	1	91 %	OTP SCP	85 °C	-40 °C	72 V	Linear Regulator Replacement	500 mA	Through Hole Right Angle	3-SIP Module	6.5 V	ITE (Commercial)	9 V
CUI Inc. V7806-1000	6.5 W	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	1	94 %	OTP SCP	85 °C	-40 °C	32 V	Linear Regulator Replacement	1 A	Through Hole	3-SIP Module	6.5 V	ITE (Commercial)	9 V
CUI Inc. V7806-1500	9.75 W	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	1	95 %	OTP SCP	85 °C	-40 °C	18 V	Linear Regulator Replacement	1.5 A	Through Hole	3-SIP Module	6.5 V	ITE (Commercial)	8 V
CUI Inc. V7806W-500	3.25 W	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	1	91 %	OTP SCP	85 °C	-40 °C	72 V	Linear Regulator Replacement	500 mA	Through Hole	3-SIP Module	6.5 V	ITE (Commercial)	9 V
CUI Inc. V7806-1500R	9.75 W	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	1	95 %	OTP SCP	85 °C	-40 °C	18 V	Linear Regulator Replacement	1.5 A	Through Hole Right Angle	3-SIP Module	6.5 V	ITE (Commercial)	8 V
CUI Inc. V7806-500	3.25 W	0.3 "	0.4 "	11.4 mm	0.45 in	7.6 mm	10.2 mm	1	94 %	OTP SCP	85 °C	-40 °C	32 V	Linear Regulator Replacement	500 mA	Through Hole	3-SIP Module	6.5 V	ITE (Commercial)	8 V
