S-1135F31-A6T1U

Obsolete

ABLIC Inc.

IC REG LINEAR 3.1V 300MA HSNT-6A

Deep-Dive with AI

Search across all available documentation for this part.

S-1135F31-A6T1U

Obsolete

ABLIC Inc.

IC REG LINEAR 3.1V 300MA HSNT-6A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S-1135F31-A6T1U

Control Features	Enable
Current - Output	300 mA
Current - Quiescent (Iq)	1 µA
Current - Supply (Max) [Max]	65 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

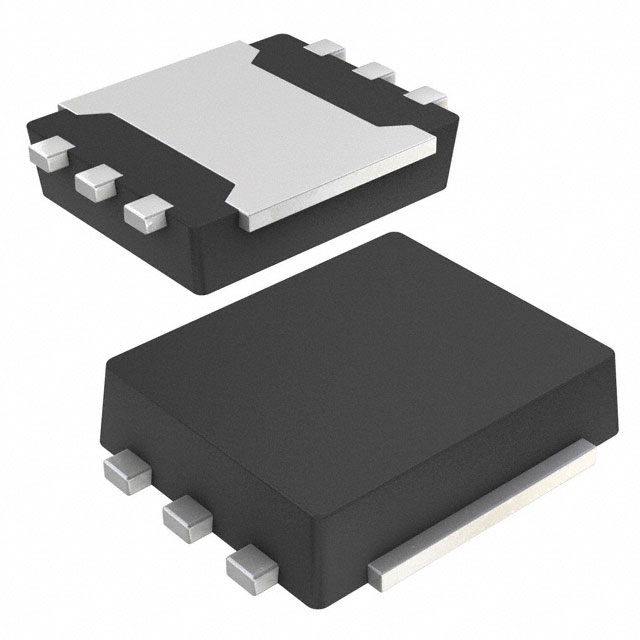

Package / Case	6-SMD, Flat Leads Exposed Pad
Protection Features	Over Current
PSRR	65 dB
Supplier Device Package	HSNT-6A
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	3.1 V

S-1135 Series

Part	Number of Regulators	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Mounting Type	Supplier Device Package	Control Features	Current - Output	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Package / Case	Output Type	PSRR	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]
ABLIC Inc. S-1135C33-U5T1G	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	3.3 V	65 µA
ABLIC Inc. S-1135F31-A6T1U	1	5.5 V	1 µA	Surface Mount	HSNT-6A	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	6-SMD Flat Leads Exposed Pad	1.81 mOhm	65 dB	3.1 V	65 µA
ABLIC Inc. S-1135D18-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	1.8 V	65 µA
ABLIC Inc. S-1135C14-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	1.4 V	65 µA
ABLIC Inc. S-1135A28-U5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	2.8 V	65 µA
ABLIC Inc. S-1135C15-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	1.5 V	65 µA
ABLIC Inc. S-1135D17-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB		65 µA
ABLIC Inc. S-1135B16-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	65 dB	1.6 V	65 µA
ABLIC Inc. S-1135B12-M5T1U	1	5.5 V	1 µA	Surface Mount	SOT-23-5	Enable	300 mA	Over Current	85 °C	-40 °C	Positive	SC-74A SOT-753	1.81 mOhm	70 dB	1.2 V	65 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S-1135 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA HSNT-6A

Documents

Technical documentation and resources

No documents available
