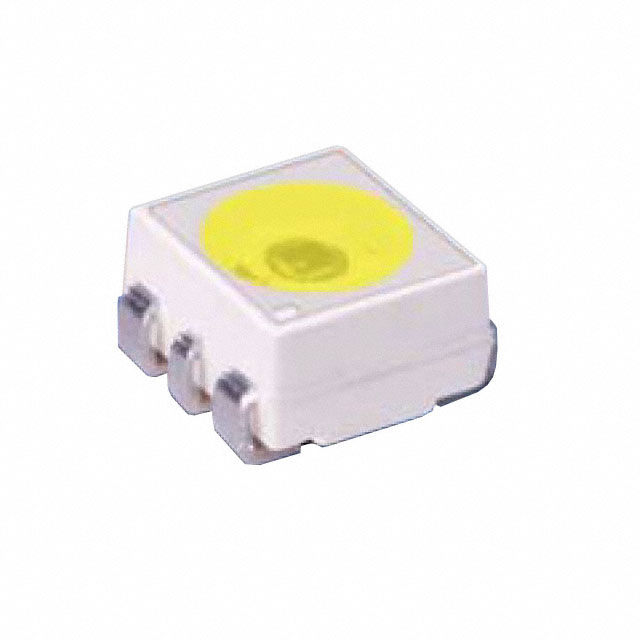

LCY G6SP-CBDB-5E-1-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED YELLOW 6PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCY G6SP-CBDB-5E-1-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED YELLOW 6PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCY G6SP-CBDB-5E-1-140-R18-Z |
|---|---|
| Color | Yellow |
| Current - Max [Max] | 250 mA |
| Current - Test | 140 mA |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Mounting Type | Surface Mount |
| Package / Case | 6-PLCC |
| Size / Dimension [x] | 3.3 mm |
| Size / Dimension [x] | 0.13 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCYG6 Series
LED Lighting Color Advanced Power TOPLED® Yellow 6-PLCC
