D38999/20FA98PN

Active

Amphenol Aerospace Operations

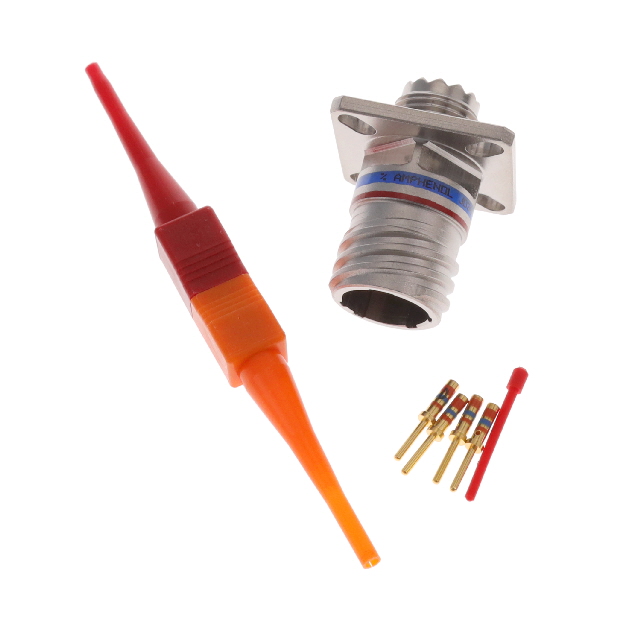

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FA98PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FA98PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

D38999/20FA Series

Part	Mounting Feature	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish - Mating	Termination	Qualification	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Material	Shell Material	Color	Grade	Primary Material	Orientation	Applications	Current Rating (Amps)	Shell Size, MIL	Shell Finish	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Housing Color	Contact Shape	Type	Note	Contact Type	Contact Size	Features	Backshell Material, Plating	Contact Size
Amphenol Aerospace Operations D38999/20FA98SN	Flange	Receptacle Female Sockets	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	98	9	Copper Alloy	Aluminum	Silver	Military	Metal	N	Aerospace Aviation Marine Military	7.5 A	A	Electroless Nickel	Environment Resistant	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/20FA35SN	Flange	Receptacle Female Sockets	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	35	9	Copper Alloy	Aluminum	Silver	Military	Metal	N	Aerospace Aviation Marine Military	5 A	A	Electroless Nickel	Environment Resistant	1.27 µm	50 µin	6
Amphenol Aerospace Operations D38999/20FA35HN-LC	Flange	Receptacle Housing	-65 ░C	200 °C	Shielded			MIL-DTL-38999 Series III	35	9		Aluminum		Military		N			A	Electroless Nickel	Environment Resistant			6	Silver	Circular	For Male Pins	Contacts Not Included	Crimp	22D
Amphenol Aerospace Operations D38999/20FA35HA	Flange	Male Pins Receptacle	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	35	9	Copper Alloy	Aluminum	Silver	Military	Metal	A	Aviation Marine Military		A	Electroless Nickel	Environment Resistant	2.54 çm	100 çin	6
Amphenol Aerospace Operations D38999/20FA35PA	Flange	Male Pins Receptacle	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	35	9	Copper Alloy	Aluminum	Silver	Military	Metal	A	Aerospace Aviation Marine Military	5 A	A	Electroless Nickel	Environment Resistant	1.27 µm	50 µin	6
Amphenol Aerospace Operations D38999/20FA35SN-US	Flange	Receptacle Female Sockets	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	35	9	Copper Alloy	Aluminum	Silver	Military	Metal	N	Aviation Marine Military		A	Electroless Nickel	Environment Resistant	1.27 µm	50 µin	6							Backshell Shielding Device	Metal
Amphenol Aerospace Operations D38999/20FA98HA-LC	Flange	Receptacle Housing	-65 ░C	200 °C	Shielded			MIL-DTL-38999 Series III	98	9		Aluminum		Military		A			A	Electroless Nickel	Environment Resistant				Silver	Circular	For Male Pins	Contacts Not Included	Crimp				20
Amphenol Aerospace Operations D38999/20FA98PN	Flange	Male Pins Receptacle	-65 ░C	200 °C	Shielded	Gold	Crimp	MIL-DTL-38999 Series III	98	9	Copper Alloy	Aluminum	Silver	Military	Metal	N	Aerospace Aviation Marine Military	7.5 A	A	Electroless Nickel	Environment Resistant	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/20FA98PA-LC	Flange	Receptacle Housing	-65 ░C	200 °C	Shielded			MIL-DTL-38999 Series III	98	9		Aluminum		Military		A			A	Electroless Nickel	Environment Resistant				Silver	Circular	For Male Pins	Contacts Not Included	Crimp				20
Amphenol Aerospace Operations D38999/20FA35JN-LC	Flange	Receptacle Housing	-65 ░C	200 °C	Shielded			MIL-DTL-38999 Series III	35	9		Aluminum		Military		N			A	Electroless Nickel	Environment Resistant			6	Silver	Circular	For Female Sockets	Contacts Not Included	Crimp	22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 232.74
		10	$ 182.32
		25	$ 166.42
		50	$ 155.70

Description

General part information

D38999/20FA Series

3 Position Circular Connector Receptacle, Male Pins Crimp
