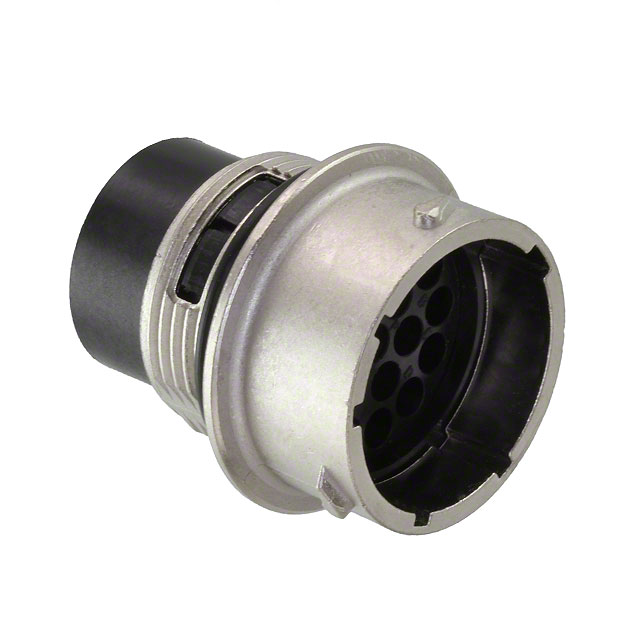

UT011619PH

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 19POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG MALE 19POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	UT011619PH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Shielded
Type	For Male Pins

Part	Note	Mounting Type	Contact Size	Contact Shape	Shell Finish	Fastening Type	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Housing Color	Ingress Protection	Insert Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material Flammability Rating	Contact Type	Number of Positions	Connector Type	Orientation
Souriau-Sunbank by Eaton UT011619PH	Contacts Not Included	Free Hanging (In-Line)	16	Circular	Nickel	Bayonet Lock	Zinc Alloy Halogen Free	16	19	Silver	IP67 - Dust Tight Waterproof	Thermoplastic Glass Filled	Shielded	-40 °C	105 ░C	For Male Pins	UL94 V-0	Crimp	19	Receptacle Housing	N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.51

General part information

19 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
