2N4921

Obsolete

ON Semiconductor

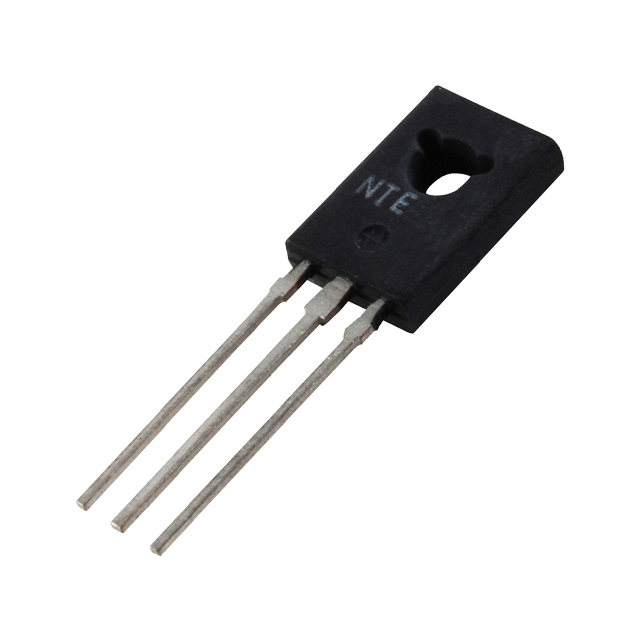

MEDIUM POWER NPN BIPOLAR POWER TRANSISTOR

Search across all available documentation for this part.

Obsolete

ON Semiconductor

MEDIUM POWER NPN BIPOLAR POWER TRANSISTOR

Technical Specifications

Parameters and characteristics for this part

Specification	2N4921

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	500 çA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 hFE
Frequency - Transition	3 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	30 W
Supplier Device Package	TO-126
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	600 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

Medium Power NPN Bipolar Power Transistor

Part	Package / Case	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Mounting Type	Frequency - Transition	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Transistor Type
ON Semiconductor 2N4921	TO-126-3 TO-225AA	600 mV	TO-126	Through Hole	3 MHz	150 °C	-65 °C	40 V	30 hFE	1 A	500 çA	30 W	NPN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The Power 3 A, 80 V Bipolar NPN Transistor is designed for driver circuits, switching and amplifier applications.
