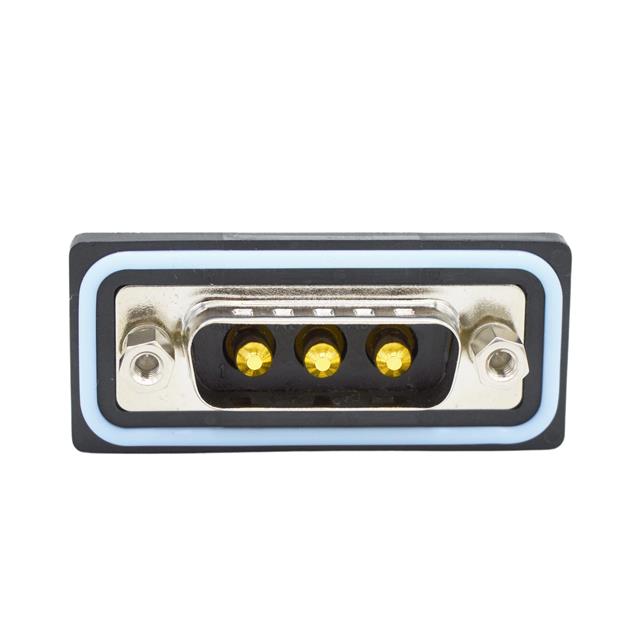

CDFS3W3103L211
ActiveMH Connectors
CONN D-SUB PLUG 3POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDFS3W3103L211
ActiveMH Connectors
CONN D-SUB PLUG 3POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFS3W3103L211 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | 2 (DA, A) |
| Shell Size, Connector Layout [custom] | 3W3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.75 | |
| 10 | $ 12.19 | |||
| 25 | $ 11.72 | |||
| 54 | $ 11.25 | |||
| 108 | $ 10.63 | |||
| 270 | $ 9.69 | |||
| 486 | $ 9.07 | |||
| 972 | $ 8.32 | |||
Description
General part information
CDFS3W3 Series
3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
