RTQ025P02HZGTR
ActiveRohm Semiconductor
MOSFET, AEC-Q101, P-CH, 20V, 2.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
RTQ025P02HZGTR
ActiveRohm Semiconductor
MOSFET, AEC-Q101, P-CH, 20V, 2.5A ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ025P02HZGTR |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 2.5 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 2.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 6.4 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 580 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

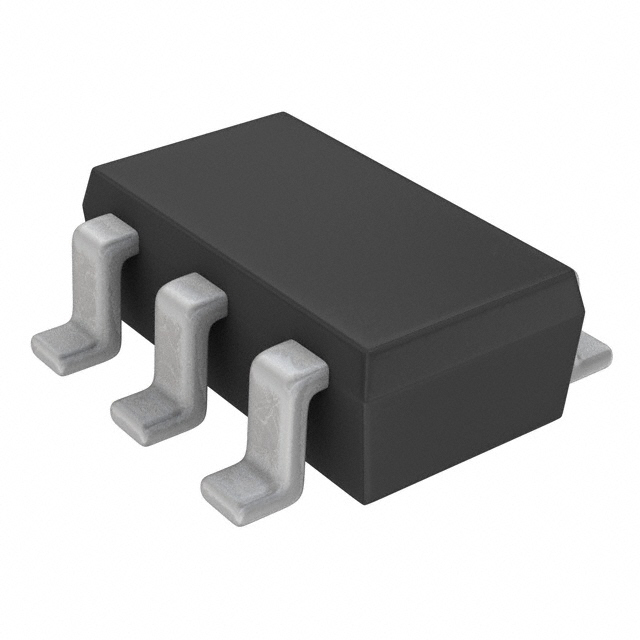

| Package / Case | TSOT-23-6, SOT-23-6 Thin |
| Power Dissipation (Max) [Max] | 950 mW |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 100 mOhm |
| Supplier Device Package | TSMT6 (SC-95) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 12 V |
| Vgs(th) (Max) @ Id | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.70 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 3000 | $ 0.28 | ||
| 6000 | $ 0.26 | |||
| 9000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 21000 | $ 0.23 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.02 | |
| 10 | $ 0.68 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.32 | |||
Description
General part information
RTQ025P02HZG Series
RTQ025P02HZG is a MOSFET for switching applications. This is a high-reliability product of automotive grade qualified to AEC-Q101.
