M39012/80-3006

Active

Amphenol SV Microwave

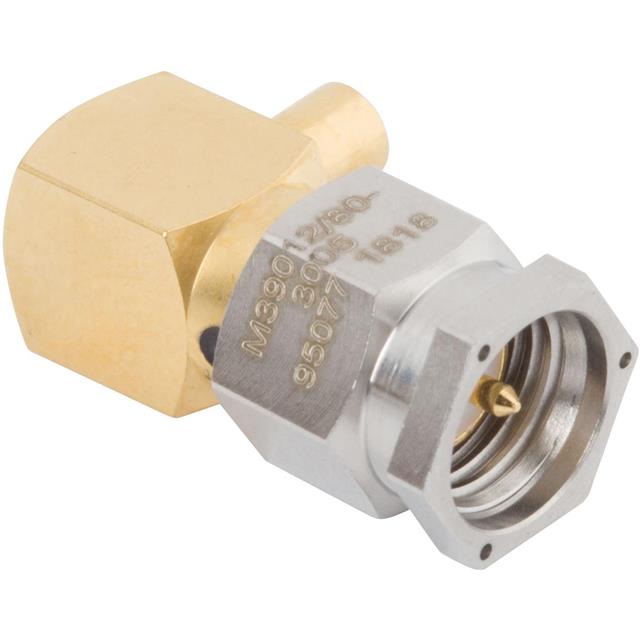

CONN SMA PLUG R/A 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M39012/80-3006

Active

Amphenol SV Microwave

CONN SMA PLUG R/A 50OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M39012/80-3006

Body Finish	Gold; Passivated
Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

M39012 Series

Part	Contact Termination	Body Finish	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Dielectric Material	Center Contact Plating	Connector Style	Cable Group	Cable Group	Shield Termination	Impedance	Center Contact Material	Connector Type	Mounting Type	Body Material	Housing Color	Includes	Color	Features	Accessory Type	For Use With/Related Products
Amphenol SV Microwave M39012/80-3006	Solder	Gold; Passivated	12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-402 (.141" Flexible)	0.141 in	Solder	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Gold Silver
Amphenol SV Microwave M39012/80B3101	Solder	Gold; Passivated	12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-405	0.085 in	Solder	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Gold Silver
Amphenol SV Microwave M39012/56B3011	Crimp		12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-178		Crimp	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/56B3116	Crimp		12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-58		Crimp	50 Ohms	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/25-3025									SMA								Stainless Steel			Silver	Chain	Cap (Cover) Dust	SMA Jacks
Amphenol SV Microwave M39012/56B3019	Crimp		12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	178 RG-174		Crimp	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/55-3026	Crimp		12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	316 RG-174		Crimp	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line)	Stainless Steel	Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/56-3109	Crimp	Gold; Passivated	12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-58	142 223 400	Solder	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Gold Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/56B3022	Crimp		12.4 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	SMA	RG-58	142	Crimp	50 Ohms	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line) Right Angle	Stainless Steel	Silver	1 Heat Shrink 2 pcs - 1 Connector
Amphenol SV Microwave M39012/26B0006	Crimp	Silver	11 GHz	-65 ░C	165 °C	500	Polytetrafluoroethylene (PTFE)	Gold	TNC	RG-142	400	Crimp	50 Ohms	Brass	Male Pin Plug	Free Hanging (In-Line)	Brass	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 41.62

Description

General part information

M39012 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
