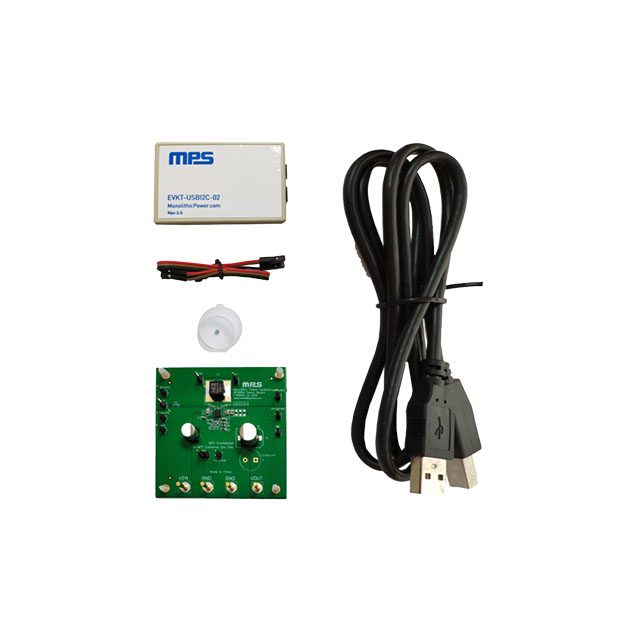

EVKT-MP8860

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAULATION KIT FOR THE MP8860

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAULATION KIT FOR THE MP8860

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output	Current - Output	Main Purpose	Frequency - Switching	Supplied Contents	Regulator Topology	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Output Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Number of Outputs	Package / Case	Topology	Synchronous Rectifier	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Input (Max) [Max]	Function	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]
MONOLITHIC POWER SYSTEMS (MPS) EVKT-MP8860	5 V	1 A	DC/DC Step Up or Down	500 kHz	Accessories Board(s) Cable(s)	Buck-Boost	Non-Isolated	1	MP8860	Fully Populated
MONOLITHIC POWER SYSTEMS (MPS) MP8860GQ-0000-P		1 A		530 kHz							Adjustable	16-QFN (3x3)	-40 °C	125 ¯C	Positive	1	16-PowerVFQFN	Buck-Boost		1 V	Surface Mount	22 V	Step-Up/Step-Down	20.47 V	2.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.00

General part information

MP8860 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
