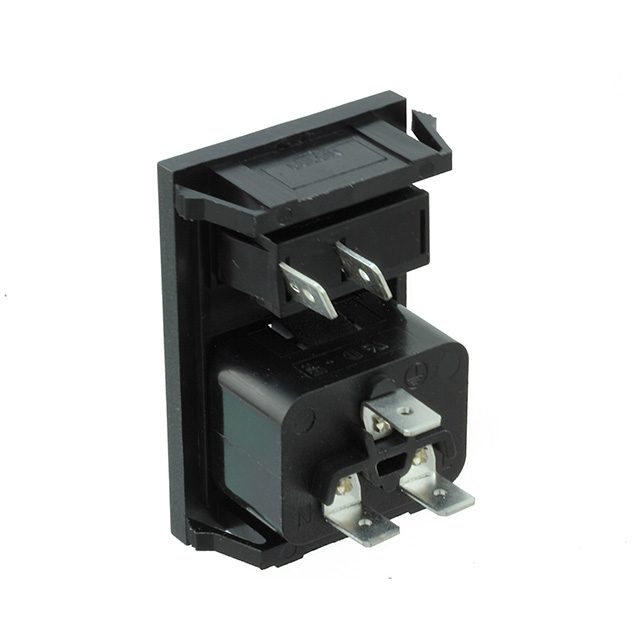

BZV49/Z0000/98
ActiveBULGIN LIMITED
CONNECTOR: AC SUPPLY; SOCKET; MALE; 16A; 250VAC; C20 (I); IEC 60320
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZV49/Z0000/98 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 16 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 34.4 mm |
| Panel Cutout Dimensions [y] | 56 mm |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BZV49/Z Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Snap-In
