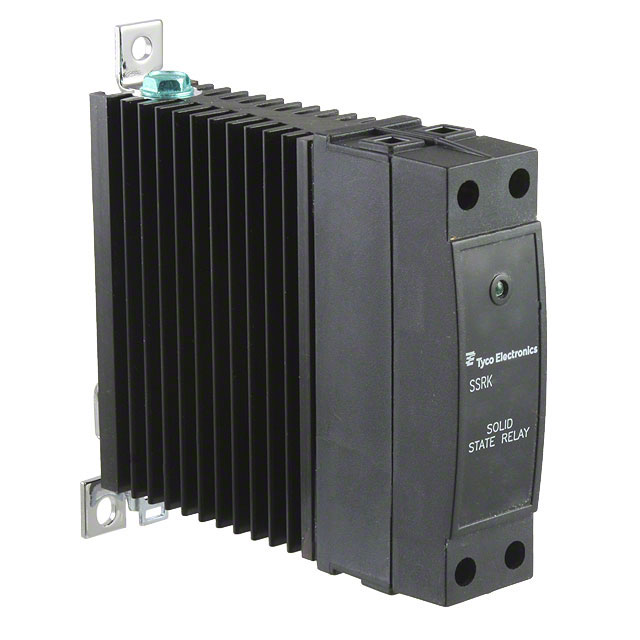

SSRK-600A10

Active

TE Connectivity Potter & Brumfield Relays

SSR RELAY SPST-NO 10A 48-660V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

SSR RELAY SPST-NO 10A 48-660V

Technical Specifications

Parameters and characteristics for this part

Specification	SSRK-600A10

Load Current	10 A
Mounting Type	DIN Rail
Output Type	AC
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	280 VAC/DC
Voltage - Input [Min]	90 VAC
Voltage - Load [Max]	660 V
Voltage - Load [Min]	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Mounting Type	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Output Type
TE Connectivity Potter & Brumfield Relays SSRK-600A30	-30 ░C	80 C	30 A	280 VAC/DC	90 VAC	SSR with Integrated Heat Sink	DIN Rail	Screw Terminal	48 V	660 V	AC
TE Connectivity Potter & Brumfield Relays SSRK-600A10			10 A	280 VAC/DC	90 VAC	SSR with Integrated Heat Sink	DIN Rail	Screw Terminal	48 V	660 V	AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 58.53

General part information

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
