NHD-0112BZ-FL-YBW
ObsoleteNewhaven Display Intl

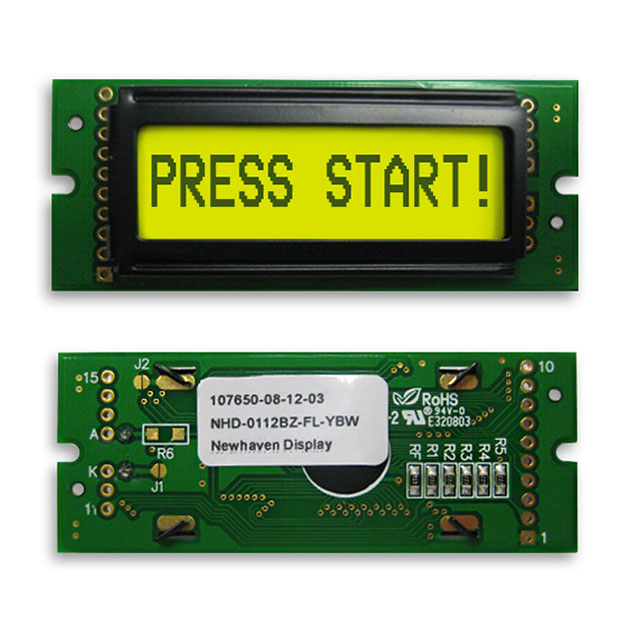

LCD MOD 12DIG 12X1 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
NHD-0112BZ-FL-YBW
ObsoleteNewhaven Display Intl
LCD MOD 12DIG 12X1 TRANS YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-0112BZ-FL-YBW |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 5 mm |
| Character Size [y] | 2.7 mm |
| Controller Type | SPLC780D, ST7066U |
| Display Format [x] | 12 |
| Display Format [y] | 1 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.5 mm |
| Dot Size [y] | 0.75 mm |
| Interface | Parallel |
| Number of Characters | 12 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 69 mm |
| Outline L x W x H [y] | 27 mm |
| Outline L x W x H [z] | 13 mm |
| Text Color | Blue |
| Viewing Area [x] | 45.2 mm |
| Viewing Area [y] | 13.8 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-0112 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 69.00mm x 27.00mm x 13.00mm
