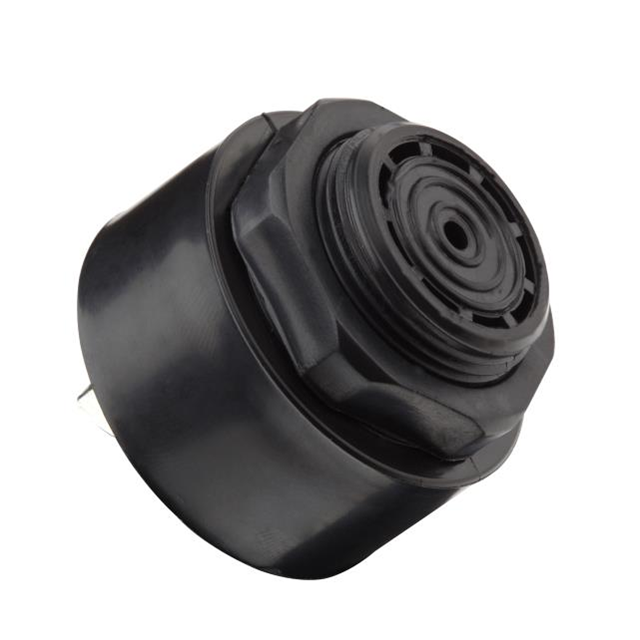

FM-110A-900
ActiveEast Electronics
BUZZER 110V 43MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM-110A-900
ActiveEast Electronics
BUZZER 110V 43MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM-110A-900 |
|---|---|
| Frequency | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 32.8 mm |
| Height - Seated (Max) [Max] [z] | 1.291 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 43 mm |
| Size / Dimension [diameter] | 1.693 in |
| Sound Pressure Level (SPL) | 85 dB |
| Termination | PC Pins |
| Voltage - Rated | 110 V |
| Voltage Range [Max] | 120 V |
| Voltage Range [Min] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.44 | |
| 100 | $ 3.59 | |||
| 1000 | $ 2.94 | |||
Description
General part information
FM-110A Series
Buzzers 110 V 20mA 2.9kHz 85dB @ 110V, 30cm Through Hole PC Pins
