RT8082GQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 12WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8082GQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 12WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8082GQW |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

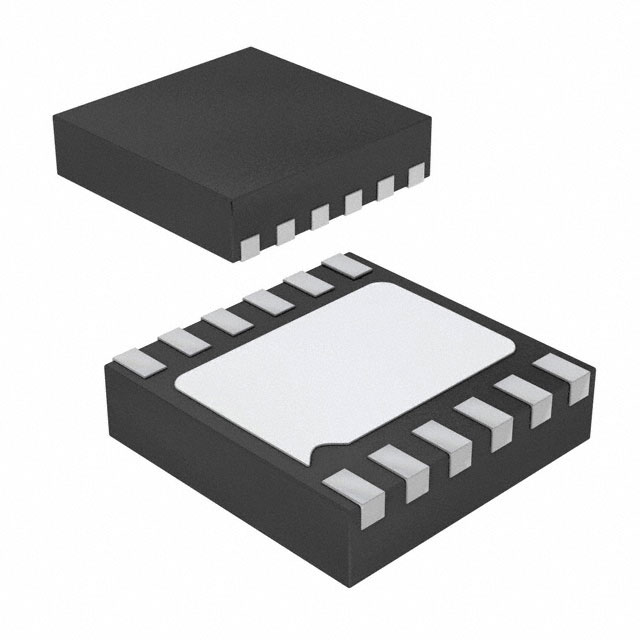

| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WDFN (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) | 5 V |
| Voltage - Output (Min/Fixed) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.12 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.73 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.31 | |||
| 25 | $ 1.12 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.73 | |||
| Tape & Reel (TR) | 1500 | $ 0.63 | ||
| 3000 | $ 0.59 | |||
| 4500 | $ 0.57 | |||
| 7500 | $ 0.54 | |||
| 10500 | $ 0.53 | |||
| 15000 | $ 0.52 | |||
Description
General part information
RT8082 Series
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A 12-WFDFN Exposed Pad
