RV8H-1L1-AD220-C1D2

Active

IDEC

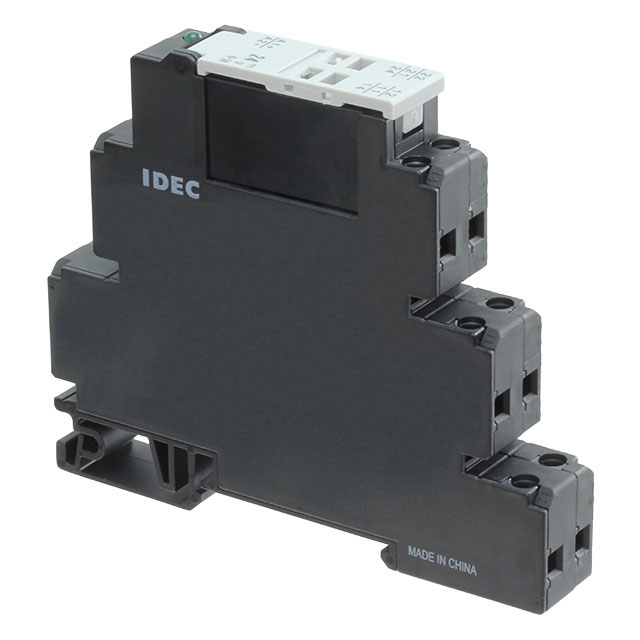

INDUSTRIAL RELAYS 14MM SPDT 240VAC/DC SCREW C1D2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RV8H-1L1-AD220-C1D2

Active

IDEC

INDUSTRIAL RELAYS 14MM SPDT 240VAC/DC SCREW C1D2

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RV8H-1L1-AD220-C1D2

Approval Agency	cULus, CE
Coil Current	5.5 mA
Coil Resistance	43.6 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Features	Socket Included
Mounting Type	DIN Rail
Must Operate Voltage	184 VAC
Must Release Voltage	16.1 VAC/DC
Operate Time	15 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC
Termination Style	Screw Terminal

RV8H-1S Series

Industrial Relays 14mm SPDT 12VAC/DC Screw C1D2

Part	Coil Current	Relay Type	Coil Type	Coil Resistance	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Must Release Voltage	Release Time	Must Operate Voltage	Operate Time	Approval Agency	Contact Rating (Current)	Contact Material	Features	Coil Voltage	Termination Style	Mounting Type	Load - Max Switching	Switching Voltage
IDEC RV8H-2S-AD12	29 mA	General Purpose	Non Latching	414 Ohms	DPDT (2 Form C)	-40 °C	70 °C	250 VAC	0.84 VAC/DC	15 ms	9.6 VAC/DC	15 ms	CE cULus	6 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	12 VAC/DC	Spring Terminal	DIN Rail
IDEC RV8H-1S1-D12	32 mA	General Purpose	Non Latching	375 Ohms	SPDT (1 Form C)	-40 °C	70 °C	250 VAC	0.84 VDC	15 ms	9.6 VDC	15 ms	CE cULus	12 A	Silver Nickel (AgNi)	Socket Included	12 VDC	Spring Terminal	DIN Rail
IDEC RV8H-1S1-AD24	21 mA	General Purpose	Non Latching	1.14 kOhms	SPDT (1 Form C)	-40 °C	70 °C	250 VAC	1.68 VAC/DC	15 ms	19.2 VAC	15 ms	CE cULus	12 A	Silver Nickel (AgNi)	Socket Included	24 VAC	Spring Terminal	DIN Rail
IDEC RV8H-2S-AD18-C1D2	24 mA	General Purpose	Non Latching	750 Ohms	DPDT (2 Form C)	-40 °C	70 °C	250 VAC	1.26 VAC/DC	15 ms	14.4 VAC/DC	15 ms	CE cULus	6 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	18 VAC/DC	Spring Terminal	DIN Rail
IDEC RV8H-2S-D9-C1D2	44 mA	General Purpose	Non Latching	205 Ohms	DPDT (2 Form C)	-40 °C	70 °C	250 VAC	0.63 VDC	15 ms	7.2 VDC	15 ms	CE cULus	6 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	9 VDC	Spring Terminal	DIN Rail
IDEC RV8H-2S-AD110-C1D2	5.8 mA	General Purpose	Non Latching	21.5 kOhms	DPDT (2 Form C)	-40 °C	70 °C	250 VAC	8.4 VAC	15 ms	96 VAC	15 ms	CE cULus	6 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	120 VAC 120 VDC	Spring Terminal	DIN Rail
IDEC RV8H-2L-AD48	9 mA	General Purpose	Non Latching	5.3 kOhms	DPDT (2 Form C)	-40 °C	55 °C	250 VAC	3.36 VAC/DC	15 ms	38.4 VAC	15 ms	CE cULus	8 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	48 VAC/DC	Screw Terminal	DIN Rail
IDEC RV8H-1L1-D18-C1D2	24 mA	General Purpose	Non Latching	750 Ohms	SPDT (1 Form C)	-40 °C	55 °C	250 VAC	1.26 VDC	15 ms	14.4 VDC	15 ms	CE cULus	16 A	Silver Nickel (AgNi)	Socket Included	18 VDC	Screw Terminal	DIN Rail
IDEC RV8H-L-AD60-C1D2	3.4 mA	General Purpose	Non Latching		SPDT (1 Form C)	-40 °C	70 °C		4.2 VAC/DC	20 ms	54 VAC/DC	15 ms	CE cULus	6 A	Gold (Au) Silver Nickel (AgNi)	Socket Included	60 VAC	Screw Terminal	DIN Rail	750 W 2400 VA	125 VDC 400 VAC
IDEC RV8H-1L1-AD220-C1D2	5.5 mA	General Purpose	Non Latching	43.6 kOhms	SPDT (1 Form C)	-40 °C	55 °C	250 VAC	16.1 VAC/DC	15 ms	184 VAC	15 ms	CE cULus	16 A	Silver Nickel (AgNi)	Socket Included	230 VAC	Screw Terminal	DIN Rail
