800-18-0OD-GR-0003F-1

Active

CnC Tech, LLC

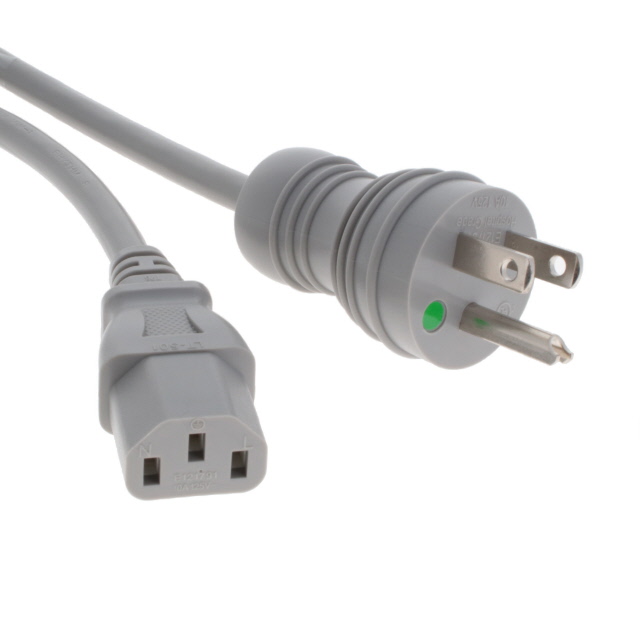

CORD 18AWG NEMA5-15P - IEC320 3'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-18-0OD-GR-0003F-1

Active

CnC Tech, LLC

CORD 18AWG NEMA5-15P - IEC320 3'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-18-0OD-GR-0003F-1

1st Connector	NEMA 5-15P
Approval Agency Marking	UL, cUL
Approved Countries	United States, Canada
Color	Gray
Cord Type	SJT
Current Rating (Amps)	10 A
Features	Hospital Grade
Length	91.44 cm
Length [x]	3 ft
Number of Conductors	3
Operating Temperature	105 C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	125 VAC
Wire Gauge	18 AWG

800-18 Series

Part	Number of Conductors	Style	Wire Gauge	Cord Type	Voltage Rating	1st Connector	Shielding	Color	Current Rating (Amps)	Features	Approved Countries	Operating Temperature	Approval Agency Marking	Length	Length	2nd Connector	Length [x]	Length [x]
CnC Tech, LLC 800-18-0OD-GR-0006F-1	3	Female Sockets Male Pins	18 AWG	SJT	125 VAC	NEMA 5-15P	Unshielded	Gray	10 A	Hospital Grade	Canada United States	105 C	cUL UL	6 ft	1.83 m
CnC Tech, LLC 800-18-39B-BL-0012F-1	3	Female Sockets Male Pins	18 AWG	SVT	125 VAC	NEMA 5-15P	Unshielded	Black	10 A		Canada United States	105 C	cUL UL	12 ft	3.66 m	IEC 320-C5
CnC Tech, LLC 800-18-13D-RE-0015F	3	Female Sockets Male Pins	18 AWG	SJT	125 VAC	NEMA 5-15P	Unshielded	Red	10 A		Canada United States	105 C	CSA cUL UL				15 ft	4.57 m
CnC Tech, LLC 800-18-66D-BL-0006F	3	Female Sockets Male Pins	18 AWG	SVT	250 VDC	IEC 320-C14	Unshielded	Black	10 A		Canada United States	105 C	CSA cUL UL	6 ft	1.83 m	IEC 320-C5
CnC Tech, LLC 800-18-39B-BL-0006F-1	3	Female Sockets Male Pins	18 AWG	SVT	125 VAC	NEMA 5-15P	Unshielded	Black	10 A		Canada United States	105 C	cUL UL	6 ft	1.83 m	IEC 320-C5
CnC Tech, LLC 800-18-39B-BL-0006F	3	Female Sockets Male Pins	18 AWG	SVT	125 VAC	NEMA 5-15P	Unshielded	Black	10 A		Canada United States	105 C	CSA cUL UL	6 ft	1.83 m	IEC 320-C5
CnC Tech, LLC 800-18-0OD-GR-0003F-1	3	Female Sockets Male Pins	18 AWG	SJT	125 VAC	NEMA 5-15P	Unshielded	Gray	10 A	Hospital Grade	Canada United States	105 C	cUL UL		91.44 cm		3 ft
CnC Tech, LLC 800-18-13D-WH-0015F-1	3	Female Sockets Male Pins	18 AWG	SJT	125 VDC	NEMA 5-15P	Unshielded	White	10 A		Canada United States	105 C	cUL UL				15 ft	4.57 m
CnC Tech, LLC 800-18-13D-WH-0010F	3	Female Sockets Male Pins	18 AWG	SJT	125 VAC	NEMA 5-15P	Unshielded	White	10 A		Canada United States	105 C	CSA cUL UL	10 ft	3.05 m
CnC Tech, LLC 800-18-2-0-SVT0-BL-00200	3	Female Sockets Male Pins	18 AWG	SVT	125 VAC	NEMA 5-15P	Unshielded	Black			Canada United States	60 °C	CSA UL				6.56 ft	2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.15
		10	$ 10.04
		25	$ 9.45
		50	$ 9.21
		100	$ 8.97
		250	$ 8.00
		500	$ 7.51
		1000	$ 6.64

Description

General part information

800-18 Series

3.00' (914.4mm) Power Cord Gray NEMA 5-15P To IEC 320-C13 SJT
