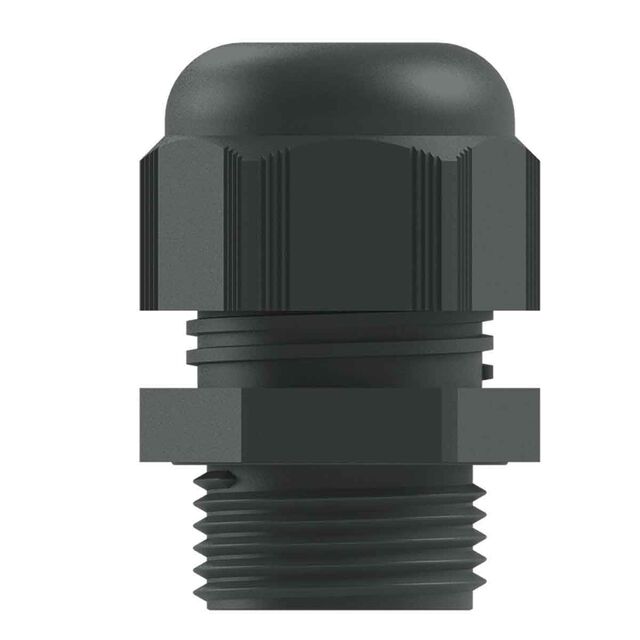

PNB-1/2R

Active

SAB North America

CABLE GLAND 5-9MM 1/2" NPT

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 5-9MM 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	PNB-1/2R

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	9 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.354 in
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.84 in
Panel Hole Size	21.3 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	1/2" NPT
Type	Cable Gland

Part	Ingress Protection	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)
SAB North America PNB-1/2C	IP68 - Dust Tight Waterproof	Cable Gland	14 mm	0.551 "	100 °C	-20 C	Black	0.84 in	21.3 mm	0.433 in	11 mm	1/2" NPT	0.394 in	10 mm
SAB North America PNB-1/2R	IP68 - Dust Tight Waterproof	Cable Gland			100 °C	-20 C	Black	0.84 in	21.3 mm	0.591 in	15 mm	1/2" NPT			5 mm	0.197 in	9 mm	0.354 in
SAB North America PNB-1/2RC	IP68 - Dust Tight Waterproof	Cable Gland			100 °C	-20 C	Black	0.84 in	21.3 mm	0.433 in	11 mm	1/2" NPT	0.276 in					12 mm	0.472 in	7 mm
SAB North America PNB-1/2	IP68 - Dust Tight Waterproof	Cable Gland			100 °C	-20 C	Black	0.84 in	21.3 mm	0.591 in	15 mm	1/2" NPT	0.236 in	6 mm				12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Black
