B-20L-34

Active

KEMET

FERRITE CORE SOLID 0.8MM

Search across all available documentation for this part.

Active

KEMET

FERRITE CORE SOLID 0.8MM

Technical Specifications

Parameters and characteristics for this part

Part	Inner Dimension [diameter]	Inner Dimension [diameter]	Outer Dimension [diameter]	Outer Dimension [diameter]	Mounting Type	Length [x]	Length [x]	Type	Material	Length	Length
KEMET B-20L-44	1.6 mm	0.063 in	4.4 mm	0.173 "	Free Hanging	7 mm	0.276 in	Round	NIZn
KEMET B-20L-34	0.8 mm	0.031 "	3.4 mm	0.133 in	Free Hanging			Round	NIZn
KEMET B-20L-48B-L			4.8 mm	0.189 in	Free Hanging			Round	NIZn	4.8 mm	0.189 in
KEMET B-20L-95B	4.8 mm	0.189 in	9.7 mm	0.382 "	Free Hanging	4.2 mm	0.165 in	Round	NIZn
KEMET B-20L-25	1 mm	0.039 "	2.5 mm	0.098 in	Free Hanging			Round	NIZn	1.2 mm	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

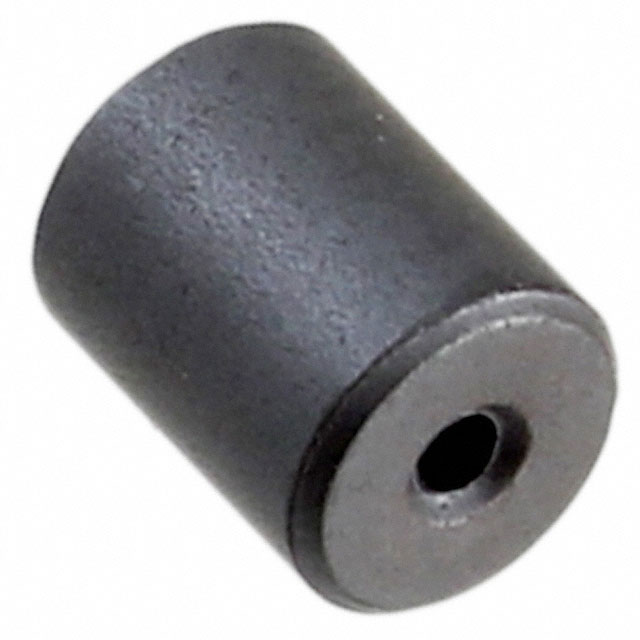

Solid Free Hanging Ferrite Core ID 0.031" Dia (0.80mm) OD 0.133" Dia (3.40mm) Length 0.173" (4.40mm)
