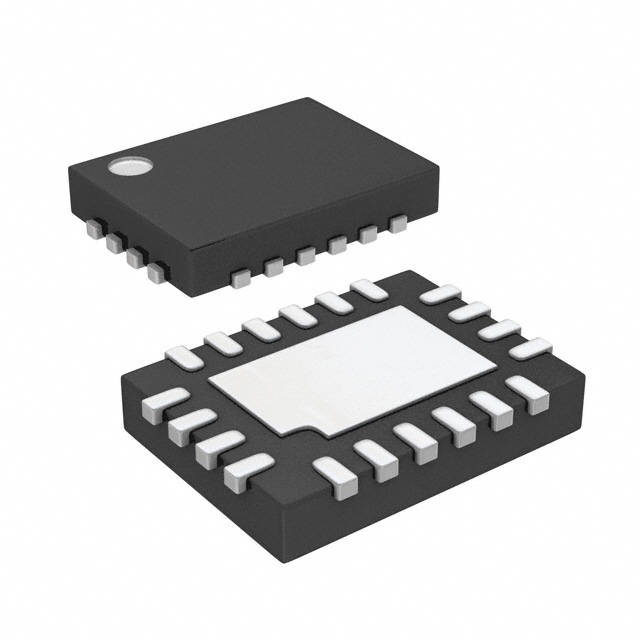

MPQ2908AGL-AEC1-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG 20QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC REG 20QFN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Control Features	Output Type	Function	Frequency - Switching [Max]	Frequency - Switching [Min]	Topology	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Duty Cycle (Max) [Max]	Output Phases	Number of Outputs	Output Configuration
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGL-Z	Surface Mount	20-QFN (3x4)	20-TFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGF-AEC1-P	Surface Mount	20-TSSOP-EP		0.173 in 4.4 mm	Exposed Pad	20-TSSOP
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGF-Z	Surface Mount	20-TSSOP-EP		0.173 in 4.4 mm	Exposed Pad	20-TSSOP	Current Limit Enable Frequency Control Power Good Soft Start	Transistor Driver	Step-Down	1 MHz	100 kHz	Buck	60 V	4 V	99.5 %	1	1	Positive
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGL-AEC1-P	Surface Mount	20-QFN (3x4)	20-TFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGL-AEC1-Z	Surface Mount	20-QFN (3x4)	20-TFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGL-P	Surface Mount	20-QFN (3x4)	20-TFQFN Exposed Pad
MONOLITHIC POWER SYSTEMS (MPS) MPQ2908AGF-AEC1-Z	Surface Mount	20-TSSOP-EP		0.173 in 4.4 mm	Exposed Pad	20-TSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.64

General part information

Switching Regulator IC Output 20-TFQFN Exposed Pad

Technical documentation and resources

No documents available
