STD01N

Obsolete

Sanken Electric USA Inc.

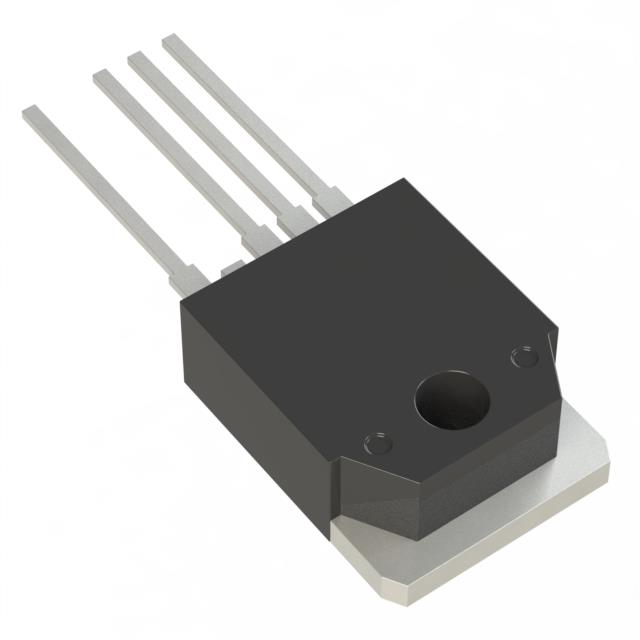

TRANS NPN DARL 150V 10A TO3P-5L

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

TRANS NPN DARL 150V 10A TO3P-5L

Technical Specifications

Parameters and characteristics for this part

Specification	STD01N

Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	5000
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-3P-5
Power - Max [Max]	100 W
Supplier Device Package	TO-3P-5L
Vce Saturation (Max) @ Ib, Ic	2 V
Voltage - Collector Emitter Breakdown (Max)	150 V

Part	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Mounting Type
Sanken Electric USA Inc. STD01P	PNP - Darlington	2 V	150 °C	100 W	150 V	100 µA	TO-3P-5	5000	TO-3P-5L	Through Hole
Sanken Electric USA Inc. STD01N		2 V	150 °C	100 W	150 V	100 µA	TO-3P-5	5000	TO-3P-5L	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN - Darlington 150 V 10 A 100 W Through Hole TO-3P-5L
