NR117K
ActiveSanken Electric USA Inc.

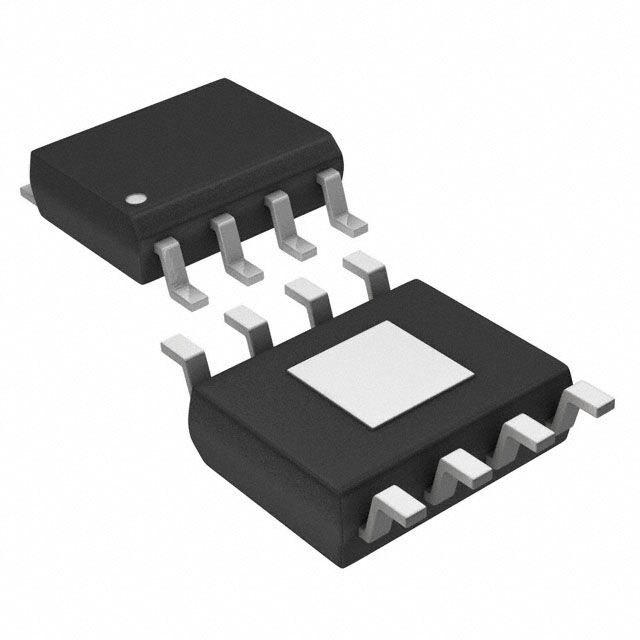

IC REG BUCK ADJUSTABLE 2A 8HSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NR117K
ActiveSanken Electric USA Inc.
IC REG BUCK ADJUSTABLE 2A 8HSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NR117K |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 350 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 31 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output (Max) | 24 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NR117 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 8-SOIC (0.173", 4.40mm Width) Exposed Pad
