0026503029

Active

Molex

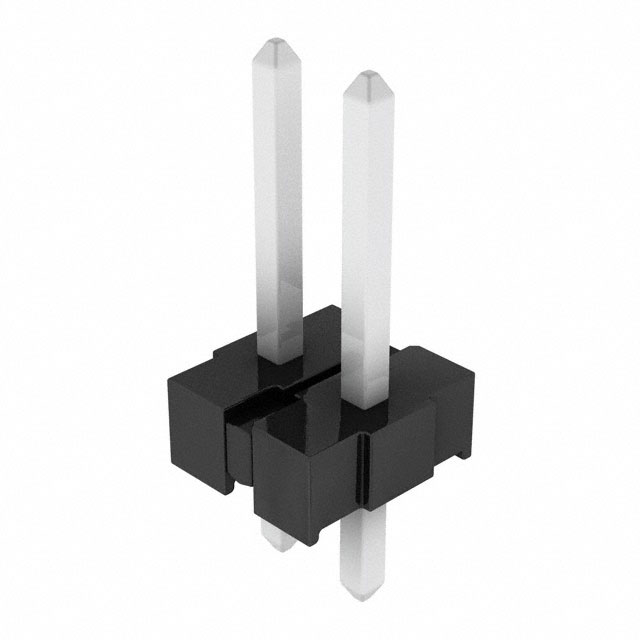

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

0026503029

Active

Molex

CONN HEADER VERT 2POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026503029

Connector Type	Breakaway, Header
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Mounting Type	Through Hole
Number of Positions	2

002650 Series

Part	Number of Rows	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Color	Contact Shape	Applications	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shrouding	Style	Insulation Material	Connector Type	Number of Positions	Contact Type	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Number of Positions Loaded [custom]
Molex 0026503108	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.5 in	12.7 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Friction Lock	Brass	60 Áin	1.52 Ám	UL94 V-0	Shrouded - 1 Wall	Board to Board Cable	Polyester	Breakaway Header	10	Male Pin	Tin	8
Molex 0026503029									Through Hole	Black									Push-Pull								Breakaway Header	2	Male Pin
Molex 0026503167	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.5 in	12.7 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Friction Lock	Brass	60 Áin	1.52 Ám	UL94 V-0	Shrouded - 1 Wall	Board to Board Cable	Polyester	Breakaway Header		Male Pin	Tin	12	16
Molex 0026503189	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.128 in	3.25 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Push-Pull	Brass	60 Áin	1.52 Ám	UL94 V-0	Unshrouded	Board to Board Cable	Polyester Glass Filled	Breakaway Header	18	Male Pin	Tin	17
Molex 0026503089	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.128 in	3.25 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Push-Pull	Brass	60 Áin	1.52 Ám	UL94 V-0	Unshrouded	Board to Board Cable	Polyester Glass Filled	Breakaway Header	8	Male Pin	Tin	7
Molex 0026503155	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.5 in	12.7 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Friction Lock	Brass	60 Áin	1.52 Ám	UL94 V-0	Shrouded - 1 Wall	Board to Board Cable	Polyester	Breakaway Header	15	Male Pin	Tin	12
Molex 0026503060	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.5 in	12.7 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Friction Lock	Brass	60 Áin	1.52 Ám	UL94 V-0	Shrouded - 1 Wall	Board to Board Cable	Polyester	Breakaway Header	6	Male Pin	Tin			5
Molex 0026503140	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.5 in	12.7 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Friction Lock	Brass	60 Áin	1.52 Ám	UL94 V-0	Shrouded - 1 Wall	Board to Board Cable	Polyester	Breakaway Header	14	Male Pin	Tin	13
Molex 0026503099	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.128 in	3.25 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Push-Pull	Brass	60 Áin	1.52 Ám	UL94 V-0	Unshrouded	Board to Board Cable	Polyester Glass Filled	Breakaway Header	9	Male Pin	Tin	8
Molex 0026503105	1	Solder	60 µin	1.52 µm	11.43 mm	0.45 in	0.172 in	4.37 mm	Through Hole	Black	Square	Automotive General Purpose Industrial Medical Telecommunications	0.128 in	3.25 mm	0.75 in	19.05 mm	0.156 in	3.96 mm	Push-Pull	Brass	60 Áin	1.52 Ám	UL94 V-0	Unshrouded	Board to Board Cable	Polyester Glass Filled	Breakaway Header	10	Male Pin	Tin	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5700	$ 0.08

Description

General part information

002650 Series

Connector Header Through Hole 2 position

Documents

Technical documentation and resources

No documents available
