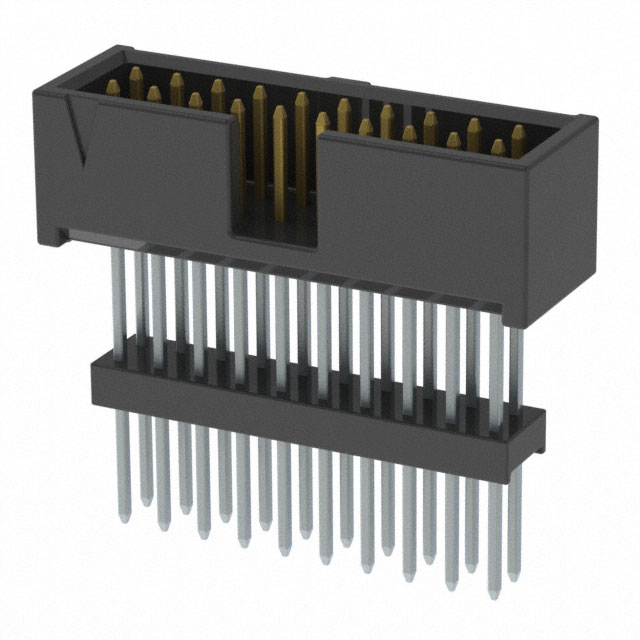

ZSS-110-05-L-D-750

Active

Samtec Inc.

CONN HDR .100" 20POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-110-05-L-D-750

Active

Samtec Inc.

CONN HDR .100" 20POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-110-05-L-D-750

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.75 in
Insulation Height	19.05 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	1.03 in
Overall Contact Length	26.16 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-110 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

...

Part	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Material	Contact Material	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Features	Insulation Height	Insulation Height	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Style	Contact Finish - Post	Current Rating (Amps)	Contact Shape	Insulation Color	Number of Positions	Number of Positions Loaded	Termination	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-110-06-S-D-950	Elevated Header	Male Pin	30 Áin	0.76 Ám	Shrouded - 4 Wall	Polyester Glass Filled	Phosphor Bronze	Push-Pull	6.35 mm	0.25 in	2	28.7 mm	1.13 in	-55 °C	125 °C	2.54 mm	0.1 in	0.18 in	4.57 mm	Keying Slot	0.95 in	24.13 mm	Through Hole	0.1 in	2.54 mm	UL94 V-0	Board to Board Cable	Tin	3 A	Square	Black	20	All	Solder	Gold
Samtec Inc. ZSS-110-05-L-D-750	Elevated Header	Male Pin	10 çin	0.25 çm	Shrouded - 4 Wall	Polyester Glass Filled	Phosphor Bronze	Push-Pull	6.35 mm	0.25 in	2	26.16 mm	1.03 in	-55 °C	125 °C	2.54 mm	0.1 in			Keying Slot	0.75 in	19.05 mm	Through Hole	0.1 in	2.54 mm	UL94 V-0	Board to Board Cable	Tin	3 A	Square	Black	20	All	Solder	Gold
Samtec Inc. ZSS-110-01-L-S-515	Elevated Header	Male Pin	10 çin	0.25 çm	Shrouded - 4 Wall	Polyester Glass Filled	Phosphor Bronze	Push-Pull	6.35 mm	0.25 in	1			-55 °C	125 °C			0.115 in	2.92 mm	Keying Slot			Through Hole	0.1 in	2.54 mm	UL94 V-0	Board to Board Cable	Tin	3 A	Square	Black	10	All	Solder	Gold	0.63 "	16 mm	0.515 "	13.08 mm
Samtec Inc. ZSS-110-04-G-D-615
Samtec Inc. ZSS-110-07-F-D-1005	Elevated Header	Male Pin	3 µin	0.076 µm	Shrouded - 4 Wall	Polyester Glass Filled	Phosphor Bronze	Push-Pull	6.35 mm	0.25 in	2	31.24 mm	1.23 in	-55 °C	125 °C	2.54 mm	0.1 in			Keying Slot			Through Hole	0.1 in	2.54 mm	UL94 V-0	Board to Board Cable	Tin	3 A	Square	Black	20	All	Solder	Gold			1.005 in	25.53 mm	5.72 mm	0.225 in
Samtec Inc. ZSS-110-06-F-D-1015	Elevated Header	Male Pin	3 µin	0.076 µm	Shrouded - 4 Wall	Polyester Glass Filled	Phosphor Bronze	Push-Pull	6.35 mm	0.25 in	2	28.7 mm	1.13 in	-55 °C	125 °C	2.54 mm	0.1 in	0.115 in	2.92 mm	Keying Slot	1.015 in	25.78 mm	Through Hole	0.1 in	2.54 mm	UL94 V-0	Board to Board Cable	Tin	3 A	Square	Black	20	All	Solder	Gold
Samtec Inc. ZSS-110-09-S-D-1340
Samtec Inc. ZSS-110-05-L-D-930
Samtec Inc. ZSS-110-04-T-D-815
Samtec Inc. ZSS-110-04-L-D-710

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.32

Description

General part information

ZSS-110 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

Documents

Technical documentation and resources

No documents available
