PQ1A-12V
ObsoletePanasonic Electric Works

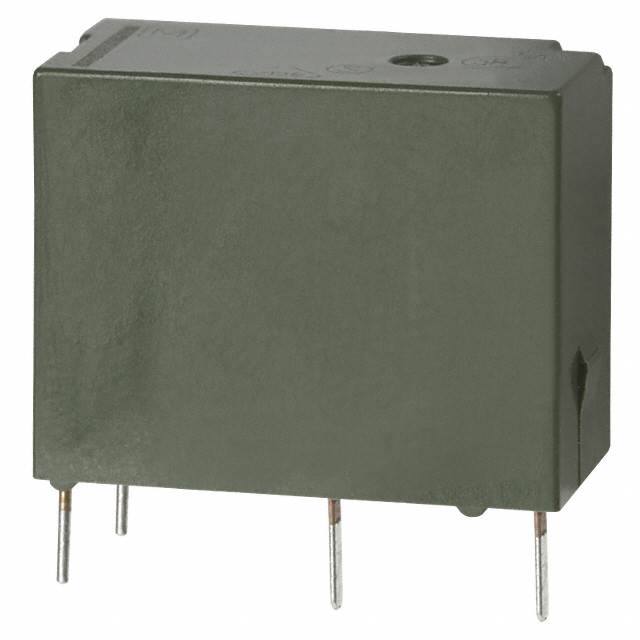

RELAY GEN PURPOSE SPST 5A 12V
Deep-Dive with AI
Search across all available documentation for this part.
PQ1A-12V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 5A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PQ1A-12V |
|---|---|
| Approval Agency | VDE, CSA, UR |
| Coil Current | 16.7 mA |
| Coil Resistance | 720 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 550 W, 1250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC, 110 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PQ1A-1 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
