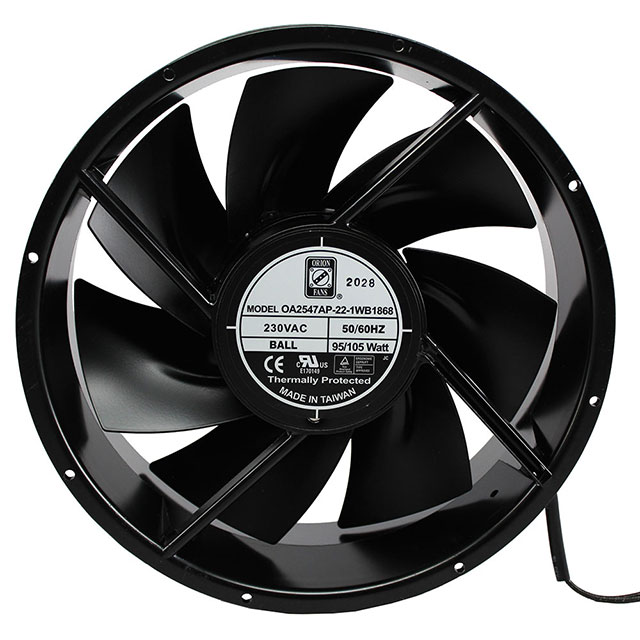

OA2547AP-22-1WB1868

Active

Orion Fans

FAN 230AC 254X254X89MM IP68 WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OA2547AP-22-1WB1868

Active

Orion Fans

FAN 230AC 254X254X89MM IP68 WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA2547AP-22-1WB1868

Air Flow	28 m³/min
Air Flow	1000 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Power (Watts)	105 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	0.6 in H2O
Static Pressure	149.5 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	5.6 lbs
Weight	2.5 kg
Width [y]	89 mm

OA2547AP Series

Part	Termination	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Material - Blade	Air Flow	Air Flow	Static Pressure	Static Pressure	Fan Type	Weight	Weight	Features	Material - Frame	Approval Agency	Power (Watts)	Ingress Protection	RPM	Bearing Type	Width [y]	Lifetime @ Temp.
Orion Fans OA2547AP-11-1TB1868	2 Terminals	10 in	Round	115 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP68 - Dust Tight Waterproof	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-22-1WB1868	2 Wire Leads	10 in	Round	230 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP68 - Dust Tight Waterproof	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-11-1WB1869K	2 Wire Leads	10 in	Round	115 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP69K	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-11-1TB1869K	2 Terminals	10 in	Round	115 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP69K	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-11-1WB1868	2 Wire Leads	10 in	Round	115 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP68 - Dust Tight Waterproof	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-22-1WB1869K	2 Wire Leads	10 in	Round	230 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP69K	3250 RPM	Ball	89 mm	50000 Hrs
Orion Fans OA2547AP-22-1TB1868	2 Terminals	10 in	Round	230 VAC	Steel	28 m³/min	1000 CFM	0.6 in H2O	149.5 Pa	Tubeaxial	5.6 lbs	2.5 kg	Capacitor Thermal Overload Protector (TOP)	Aluminum	CE cURus TUV UR	105 W	IP68 - Dust Tight Waterproof	3250 RPM	Ball	89 mm	50000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 170.50
		10	$ 157.04
		25	$ 146.94
		50	$ 144.70

Description

General part information

OA2547AP Series

Fan Tubeaxial 230VAC Round - 254mm Dia Ball 1000.0 CFM (28.00m³/min) 2 Wire Leads

Documents

Technical documentation and resources

No documents available
