RS30HT-070

Active

OptiFuse

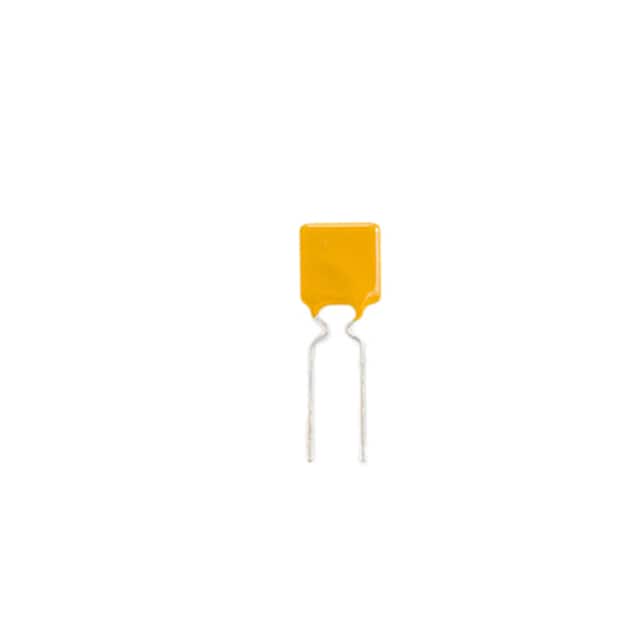

PTC RESET FUSE 30V 700MA RADIAL

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 30V 700MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	RS30HT-070

Approval Agency	cULus
Current - Hold (Ih) (Max) [Max]	700 mA
Current - Max [Max]	40 A
Current - Trip (It)	1.4 A
Height - Seated (Max) [Max]	0.425 in
Height - Seated (Max) [Max]	10.8 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	300 mOhms
Resistance - Post Trip (R1) (Max) [Max]	800 mOhms
Size / Dimension [x]	0.272 in
Size / Dimension [x]	6.9 mm
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Time to Trip	3.2 s
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Lead Spacing	Lead Spacing	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Resistance - Post Trip (R1) (Max) [Max]	Approval Agency	Voltage - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Current - Max [Max]	Current - Trip (It)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
OptiFuse RS30HT-070	5.1 mm	0.201 in	700 mA	300 mOhms	Through Hole	Polymeric	0.425 in	10.8 mm	Disc Radial	800 mOhms	cULus	30 V	125 °C	-40 °C	3.2 s	40 A	1.4 A	0.118 in	3 mm	0.272 in	6.9 mm
OptiFuse RS30HT-050	5.1 mm	0.201 in	500 mA		Through Hole	Polymeric			Disc Radial	1.1 Ohms	cULus	30 V	125 °C	-40 °C	2.5 s	40 A	900 mA					0.118 "	0.291 in	7.4 mm	3 mm	12.7 mm	0.5 in
