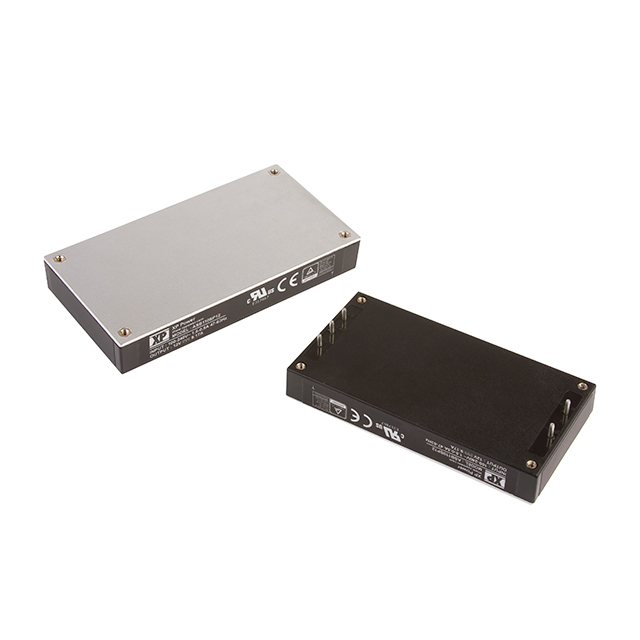

ASB110PS24
ActiveXP POWER
AC/DC CONVERTER 24V 110W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASB110PS24
ActiveXP POWER
AC/DC CONVERTER 24V 110W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASB110PS24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, TUVgs, CB, cURus |
| Current - Output (Max) [Max] | 4.58 A |
| Efficiency | 91 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 0.5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 110 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 17 mm |
| Size / Dimension [z] | 0.67 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Output 1 | 24 V |
| Weight | 231.33 g |
| Weight | 0.51 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 209.00 | |
| 5 | $ 202.73 | |||
| 10 | $ 196.46 | |||
| 25 | $ 188.10 | |||
| 100 | $ 175.56 | |||
Description
General part information
ASB110 Series
Enclosed AC DC Converters 1 Output 24V 4.58A 85 ~ 264 VAC Input
Documents
Technical documentation and resources
