0367570105

Active

Molex

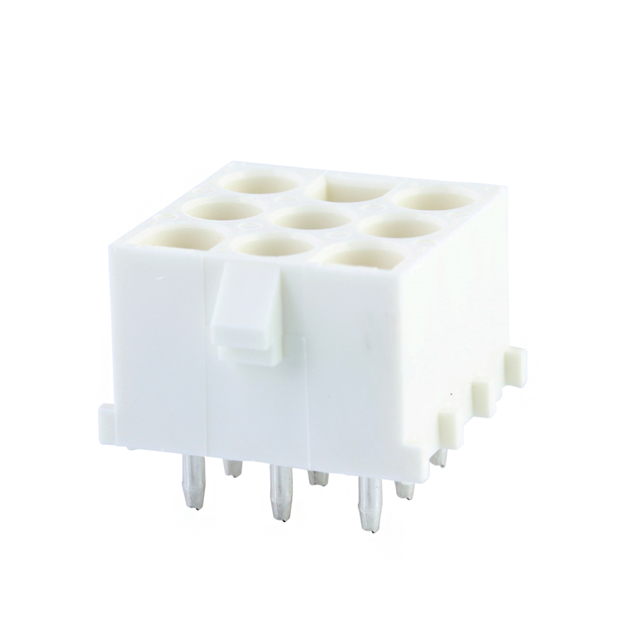

CONN HEADER VERT 9POS 6.35MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0367570105

Active

Molex

CONN HEADER VERT 9POS 6.35MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0367570105

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.5 µm
Contact Finish Thickness - Mating	137.8 µin
Contact Length - Post	0.169 in
Contact Length - Post	4.3 mm
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

036757 Series

6.35mm Pitch MLX Power Connector Header, Vertical, with Plastic Polarizing Peg, 3 Circuits, Polyester 94V-2, Tin Plating, White (Translucent), Lead-Free

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Connector Type	Contact Shape	Features	Style	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Shrouding	Applications	Number of Positions	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Post	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Current Rating (Amps)
Molex 0367570105	All	3.5 µm	137.8 µin	Through Hole	3	Header	Circular	Glow Wire Compliant	Board to Cable/Wire	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in	0.55 in	13.97 mm	UL94 V-2	Solder	Shrouded - 4 Wall	Automotive General Purpose Industrial	9	Natural	0.169 in	4.3 mm	Male Pin	Tin	Locking Ramp	0.25 in	6.35 mm
Molex 0367570143	All	3.5 µm	137.8 µin	Through Hole	1	Header	Circular	Glow Wire Compliant	Board to Cable/Wire	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in	0.55 in	13.97 mm	UL94 V-2	Solder		Automotive General Purpose Industrial Telecommunications	4	Natural	0.169 in	4.3 mm	Female Socket	Tin	Locking Ramp			105 ░C	-55 °C	600 V	137.8 Áin	3.5 Ám	Phosphor Bronze
Molex 0367570144	All	3.5 µm	137.8 µin	Through Hole	2	Header	Circular		Board to Cable/Wire	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in			UL94 V-2	Solder			6	Natural	0.17 in	4.32 mm	Female Socket	Tin	Locking Ramp	0.25 in	6.35 mm	105 ░C	-55 °C	600 V	137.8 Áin	3.5 Ám		20 A
Molex 0367570025	All	3.5 µm	137.8 µin	Through Hole	3	Header	Circular	Board Guide Glow Wire Compliant	Board to Cable/Wire	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in	0.55 in	13.97 mm	UL94 V-2	Solder	Shrouded - 4 Wall	Automotive General Purpose Industrial	9	Natural	0.169 in	4.3 mm	Male Pin	Tin	Locking Ramp	0.25 in	6.35 mm
Molex 0367570066	All	3.56 µm	140 µin	Through Hole	3	Header		Board Guide	Board to Board Cable	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in	0.55 in	13.97 mm	UL94 V-2	Solder			12	Natural	0.17 in	4.32 mm	Female Socket	Tin	Locking Ramp	0.25 in	6.35 mm	105 ░C	-55 °C	600 V	140 µin	3.56 µm	Phosphor Bronze	9 A
Molex 432550027
Molex 0367570024	All	3.5 µm	137.8 µin	Through Hole	2	Header	Circular	Board Guide Glow Wire Compliant	Board to Cable/Wire	Polyamide (PA6) Nylon 6	6.35 mm	0.25 in	0.55 in	13.97 mm	UL94 V-2	Solder	Shrouded - 4 Wall	Automotive General Purpose Industrial	6	Natural	0.169 in	4.3 mm	Male Pin	Tin	Locking Ramp	0.25 in	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2080	$ 0.86

Description

General part information

036757 Series

6.35mm Pitch MLX Power Connector Header, Vertical, with Plastic Polarizing Peg, 3 Circuits, Polyester 94V-2, Tin Plating, White (Translucent), Lead-Free
