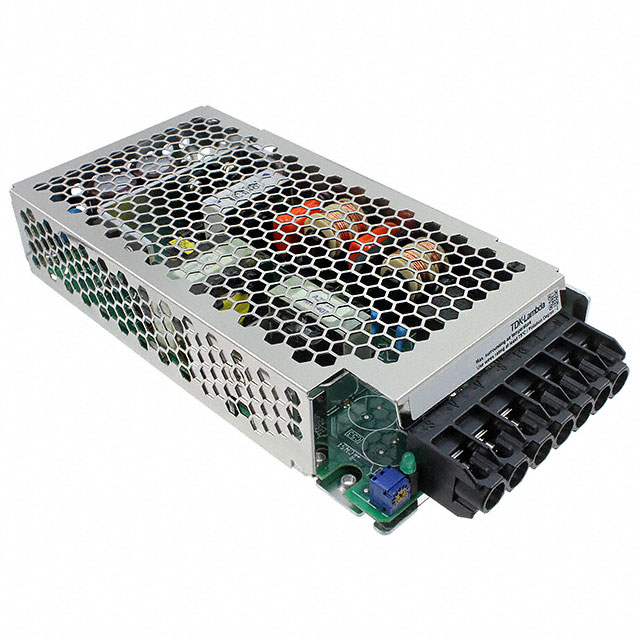

HWS100A-15/A

Active

TDK-LAMBDA

ENCLOSED POWER SUPPLY, ADJUSTABLE, FIXED, 85 V, 265 V, 105 W, 15 V, 7 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

HWS100A-15/A

Active

TDK-LAMBDA

ENCLOSED POWER SUPPLY, ADJUSTABLE, FIXED, 85 V, 265 V, 105 W, 15 V, 7 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HWS100A-15/A

Applications	Industrial, ITE (Commercial)
Approval Agency	CE
Current - Output 1	7 A
Efficiency	86 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	6.32 "
Size / Dimension [x]	160.5 mm
Size / Dimension [y]	33.5 mm
Size / Dimension [y]	1.32 in
Size / Dimension [z]	3.27 in
Size / Dimension [z]	83 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

HWS100 Series

Part	Voltage - Isolation	Voltage - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Applications	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Features	Mounting Type	Approval Agency	Efficiency
TDK-LAMBDA HWS100A-15/ME	3000 V	15 V	Open Frame	-10 °C	70 °C	33.5 mm	3.27 in	6.32 "	160.5 mm	1.32 in	83 mm	100 W	ITE (Commercial) Medical	7 A	85 VAC	265 VAC	1	Adjustable Output DC Input Capable Remote Sense Universal Input	Chassis Mount	CE	88 %
TDK-LAMBDA HWS100A-5/RA	3000 V	5 V	Enclosed	-10 °C	70 °C							100 W	Industrial ITE (Commercial)	20 A	85 VAC 120 VDC	265 VAC 370 VDC	1	Adjustable Output Remote On/Off Remote Sense Universal Input	Chassis Mount	CE	86 %
TDK-LAMBDA HWS100A-15/A	3000 V	15 V	Enclosed	-10 °C	70 °C	33.5 mm	3.27 in	6.32 "	160.5 mm	1.32 in	83 mm	100 W	Industrial ITE (Commercial)	7 A	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Remote Sense Universal Input	Chassis Mount	CE	86 %
TDK-LAMBDA HWS100A-3/A	3000 V	3.3 V	Enclosed	-10 °C	70 °C	33.5 mm	3.27 in	6.32 "	160.5 mm	1.32 in	83 mm	100 W	Industrial ITE (Commercial)	20 A	85 VAC 120 VDC	264 VAC 370 VDC	1	Adjustable Output Remote Sense Universal Input	Chassis Mount	CE	81 %
TDK-LAMBDA HWS100A-15/HD	3000 V	15 V	Conformal Coated Open Frame	-10 °C	71 °C	28.5 mm	3.27 in	6.32 "	160.5 mm	1.12 in	83 mm	105 W	ITE (Commercial)	7 A	85 VAC 120 VDC	265 VAC 370 VDC	1	Adjustable Output PFC Universal Input	Chassis Mount	CE	88 %
TDK-LAMBDA HWS100A-48/RA	3000 V	48 V	Enclosed	-10 °C	70 °C							101 W	Industrial ITE (Commercial)	2.1 A	85 VAC 120 VDC	265 VAC 370 VDC	1	Adjustable Output Remote Sense Universal Input	Chassis Mount	CE	90 %
TDK-LAMBDA HWS100A-5/ME	3000 V	5 V	Open Frame	-10 °C	70 °C	33.5 mm	3.27 in	6.32 "	160.5 mm	1.32 in	83 mm	100 W	ITE (Commercial)	20 A	85 VAC	265 VAC	1		Chassis Mount	CE	86 %
TDK-LAMBDA HWS100A-12/ME	3000 V	12 V	Open Frame	-10 °C	70 °C	33.5 mm	3.27 in	6.32 "	160.5 mm	1.32 in	83 mm	100 W	ITE (Commercial) Medical		85 VAC	265 VAC	1		Chassis Mount	CE	88 %
TDK-LAMBDA HWS100A-24/HDA	3000 V	24 V	Conformal Coated Enclosed	-10 °C	71 °C	28.5 mm	3.27 in	6.32 "	160.5 mm	1.12 in	83 mm	108 W	ITE (Commercial)	4.5 A	85 VAC 120 VDC	265 VAC 370 VDC	1	Adjustable Output Remote Sense Universal Input	Chassis Mount	CE cURus DEMKO	89 %
TDK-LAMBDA HWS100A-15/RA	3000 V	15 V	Enclosed	-10 °C	70 °C							105 W	Industrial ITE (Commercial)	7 A	85 VAC 120 VDC	265 VAC 370 VDC	1	Adjustable Output Remote On/Off Remote Sense Universal Input	Chassis Mount	CE	88 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 124.07
		10	$ 117.86
		25	$ 111.97
		50	$ 108.56
Newark	Each	1	$ 124.07
		10	$ 117.86
		25	$ 111.97
		50	$ 102.08

Description

General part information

HWS100 Series

Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 120 ~ 370 VDC Input
