E3MSCQG

Active

Switchcraft Inc.

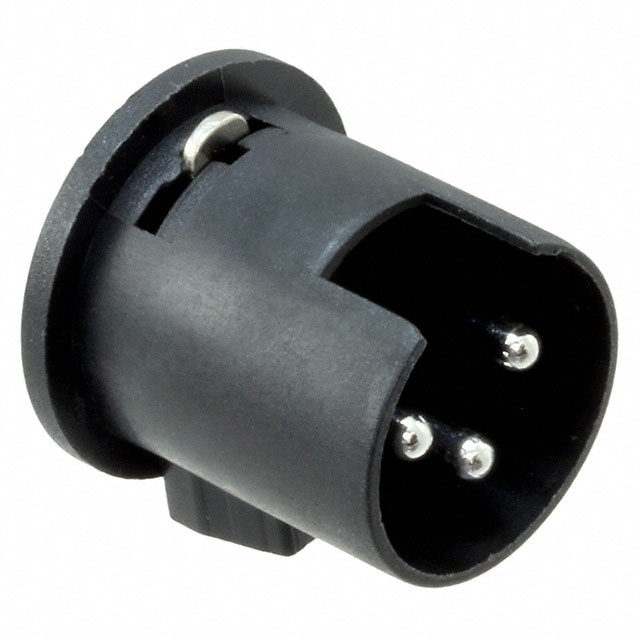

CONN MALE INSERT XLR 3P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E3MSCQG

Active

Switchcraft Inc.

CONN MALE INSERT XLR 3P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E3MSCQG

Applications	Audio, Instrumentation
Connector Type	Insert, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Features	Insert Only, Requires Shell
Insert Material	Thermoplastic
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	XLR

E3MS Series

Part	Current Rating (Amps)	Shell Size - Insert	Applications	Contact Material	Shielding	Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Primary Material	Contact Finish - Mating	Connector Type	Insert Material	Fastening Type	Termination	Features	Mounting Feature	Shell Finish	Orientation	Mounting Type
Switchcraft Inc. E3MSW	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins Receptacle	Thermoplastic	Latch Lock	Screw	Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MSTAU	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Gold	Male Pins Receptacle	Thermoplastic	Latch Lock	Solder	Ground	Flange	Nickel	Keyed	Panel Mount Through Hole
Switchcraft Inc. E3MSCQG	15 A	XLR	Audio Instrumentation	Copper Alloy			85 °C	-55 °C			Silver	Insert Male Pins	Thermoplastic			Insert Only Requires Shell			Keyed
Switchcraft Inc. E3MSC	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins Receptacle	Thermoplastic	Latch Lock		Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MSTBAU	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Black	85 °C	-55 °C	Zinc Die Cast	Metal	Gold	Male Pins Receptacle	Thermoplastic	Latch Lock	Solder	Ground	Flange	Chrome	Keyed	Panel Mount Through Hole
Switchcraft Inc. E3MSWEL	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Silver	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins Receptacle	Thermoplastic	Latch Lock	Screw	Ground	Flange	Nickel	Keyed
Switchcraft Inc. E3MSCB	15 A	XLR	Audio Instrumentation	Copper Alloy	Shielded	Black	85 °C	-55 °C	Zinc Die Cast	Metal	Silver	Male Pins Receptacle	Thermoplastic	Latch Lock		Ground	Flange	Chrome	Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.41
		10	$ 2.19
		25	$ 2.08
		50	$ 2.03
		100	$ 1.93
		250	$ 1.70

Description

General part information

E3MS Series

3 Position Circular Connector Insert, Male Pins Solder Cup
