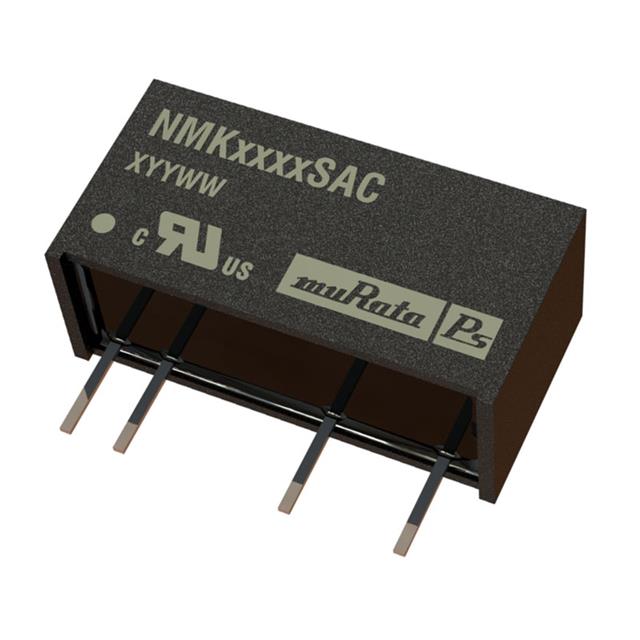

NMK2415SAC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 15 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 2 W, 1 OUTPUT, 15 V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Type	Voltage - Output 2
Murata Power Solutions Inc. NMK2415SAC	3000 V	21.6 V	133 mA	88 %	2 W	1	85 °C	-40 °C	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	ITE (Commercial)	Through Hole	26.4 V	7-SIP Module 4 Leads	15 V	Isolated Module
Murata Power Solutions Inc. NMK2405SC	3000 V	21.6 V		84 %	2 W	2	85 °C	-40 °C	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	ITE (Commercial)	Through Hole	26.4 V	7-SIP Module 5 Leads	5 V	Isolated Module	-5 V
Murata Power Solutions Inc. NMK2405SAC	3000 V	21.6 V	400 mA	84 %	2 W	1	85 °C	-40 °C	0.4 "	10.2 mm	19.7 mm	0.3 "	7.7 mm	0.77 in	ITE (Commercial)	Through Hole	26.4 V	7-SIP Module 4 Leads	5 V	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 133mA 21.6V - 26.4V Input
